Structure: | Single Wall Structure | Ingress Protection: | IP55 |
---|---|---|---|
Cooling: | Air Conditioner 500w And Two Fans | Working Temperature: | -40°C ~ + 60°C |
DC48V LED Outdoor Telecom Enclosure Anticorrosion Single Wall Structure
1, Description Of Outdoor Telecom Cabinet
All of our cabinet configuration options, can be customized to adapt to the strict state specifications via mounting options and material options depending on the different environmental factors that the control enclosure will be subjected to.traffic control cabinets can be custom manufactured from aluminum, stainless steel and carbon steel with optional fans, lights, thermostats, surge protectors and other built-in traffic accessories.
2, Selling points and Feature Of Outdoor Equipment Cabinet
>>> IP55
>>> A different choice for the front door
>>> Available in different colours
>>> Available in different depths/widths as well as heights
>>> Grounding and earthing kits
>>> Protection from dirt, dust, oil, and other non-corrosive material
>>> Complete protection from contact with enclosed equipment
>>> Available in aluminum, carbon steel, and stainless steel
>>> Available in wall-mounted, free standing, trough, and telegraph pole mounting
>>> Engraving, silk-screening, or anodizing services available
>>> Custom with cutouts, insulation,cooling system, hinges, latches, or locks
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | Cabinet External Size : 480mm×480mm×780mm (W×D×H) |
Layout | One compartment | |
Equipment Installation Method | 19″ Data Rack Rails | |
Door |
The cabinet door uses embedded structure. The door includes a 3 point locking system with key-lock swing handle. The cabinet door uses embedded structure |
|
Material | The cabinet is made of galvanized steel,1.2mm steel plate with 20mm heat insulation | |
Structure | Single wall structure | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | Air conditioner 500w and two fans |
Temperature | Temperature | Working Temperature: -40°C ~ + 60°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | ≤95% (at + 40°C) |
Pressure | Air Pressure | 70kPa ~ 106kPa |
Cabinet load bearing |
≥600kg
|
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set | Cabinet External Size : 480mm×480mm×780mm (W×D×H) |
2 | Fan | 4 | Set | two fans |
3 | Package | 1 | Set | Wooden Case |
4 | Air conditioner | 1 | Set | 500W |
5 | Door detector | 1 | Set | 1 set |
6 | LED LAMP | 1 | Set | DC48V LED LAMP |
5, Enclosure Cooling
Air conditioner 500w and two fans
6, Cabinet Structure

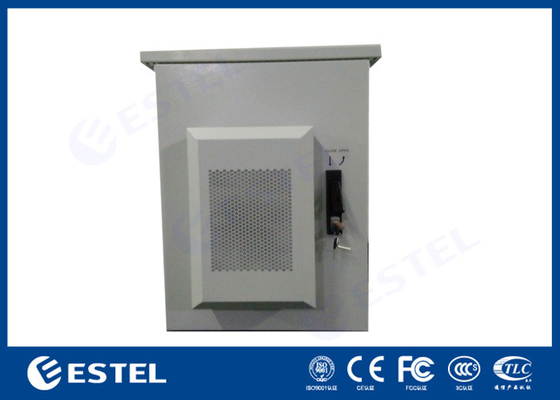

(1) Cabinet External Size : 480mm×480mm×780mm (W×D×H)

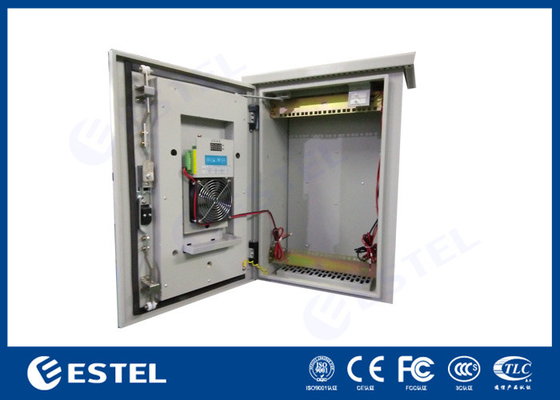

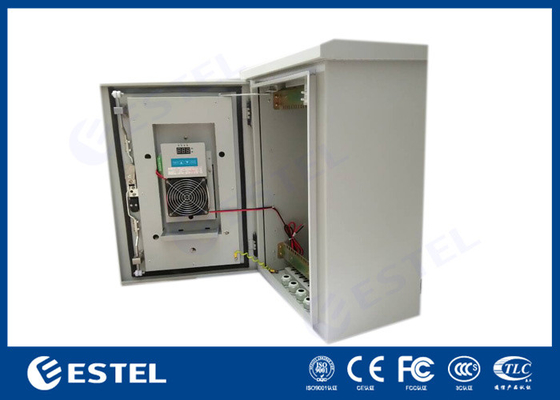

(2) One compartment; The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.
(3) The cabinet is made of galvanized steel,1.2mm steel plate with 20mm heat insulation
9, Main equipment
1, Laser Cutters
2, Laser Cutting Work
3, CNC Punch
4, CNC Bender
