Dimension: | 900×900×2000mm | Ingress Protection: | IP55 |
---|---|---|---|
Lighting: | DC 48V LED Lamp | Working Temperature: | -40°C ~ +55°C |
Storage Temperature: | -50°C ~ + 70°C | Transport Temperature: | -50°C ~ +70°C |
1. Introduction
Heavy batteries demand a solar battery box with extra strength and durability. In order to protect outdoor batteries from weather and damage,Solar batteries require certain conditions to maintain their productivity. We designs and manufacturers each solar energy battery enclosure to meet this requirement.
2. Features
Enclosures constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts.
To provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt)
To provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow); that will be undamaged by the external formation of ice on the enclosure
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension: W×D×H 900×900×2000mm |
Layout | 1 compartment | |
Equipment Installation Method | 19” rack | |
Door | Double doors, with anti-theft three point lock for outdoor cabinet (support padlock). | |
Material | Galvanized steel | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | Air conditioner and fans |
Lighting | LED lamp | 48V LED lamps |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | PC |
(1) External Dimension: W×D×H 900×900×2000mm (2) One compartment (3) Double doors, and anti-theft three point lock for outdoor cabinet (support padlock). |
2 | Air Conditioner | 2 | PC |
Cooling capacity: 1.5KW. Power Supply: AC220V, 50Hz. One installed on front door, the other on back door. |
3 | Auxiliary Direct Ventilation Fans | 2 | PC | DC48V |
4 | Environment Monitoring Unit | 1 | PC | 1U, DC48V, support SNMP communication |
5 | Water Sensor | 1 | PC | |
6 | Smoke Sensor | 1 | PC | |
7 | Temperature and Humidity Sensor | 1 | PC | |
8 | Door Sensor | 2 | PC | |
9 | Shock Sensor | 1 | PC | |
10 | LED Lamp | 2 | PC | DC48V |
11 | LED Lamp Switch | 2 | PC | One for controlling LED lamp on/off |
12 | Power Distribution Unit | 1 | PC |
Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4 Input Voltage: AC220V, 50Hz |
13 | Package | 1 | PC | Wooden Case |

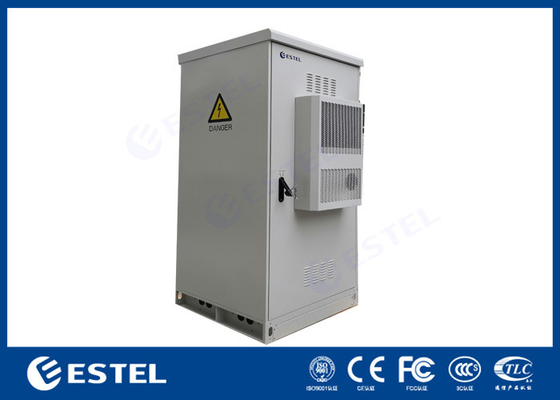

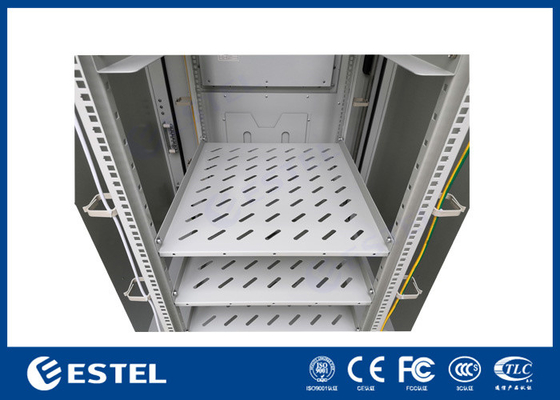

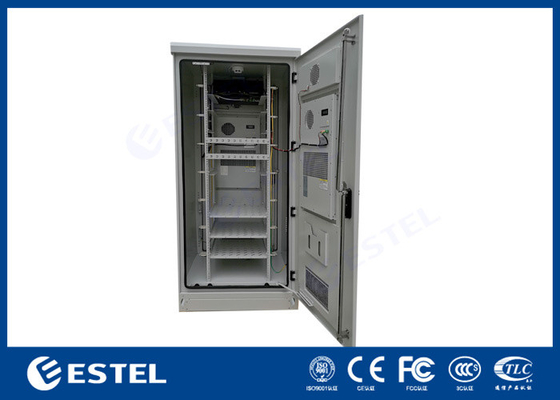

5. Cabinet Pictures
6, Power system connections
Connection of DC battery cables
The power system terminals for battery connection is terminal block, signed as + and BAT-. The cable can be directly inserted to the terminal. The detailed process of battery connection is as follows:
a. Prepare positive connection cables and negative connection cables(including terminals and
polarity identifications ready).
b. Fasten up the battery connection cable
c. Connect one end of positive connection cable to the “+” on the front panel of the system;
d. Connect one end of negative connection cable to the BAT. “-” on the front panel of the system;
