Material: | SPCC,stainless Steel,galvanized Steel Or As Customer's Requirements | Protection Level: | IP55 |
---|---|---|---|
Equipment Installation Method: | 19” Standard Rack | Temperature Control: | 1500W Air Conditioner And 2 Fans |
Transport Temperature: | -50°C ~ +70°C | Storage Temperature: | -50°C ~ + 70°C |
1, Description Of IP 55 Electrical Enclosures
Telecom cabinets are the ideal way of storing and protecting equipment at remote sites. These outdoor telecom equipment cabinets come in different styles and sizes, but all have the same general purpose: to protect valuable equipment from natural elements and vandalism.
2, Selling points and Feature Of IP 55 Electrical Enclosures
- Material: SPCC,stainless steel,galvanized steel or as customer's requirements
- Cooling System: Air conditioner(Fans,or Heat exchange)
- Protection Level: IP55 ,Waterproof,dust proof.
- Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection
- Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension W×D×H 800×800×1750mm |
Layout | One compartment | |
Equipment Installation Method | 19” standard rack | |
Door | With one front door ,totally two doors; with special lock for outdoor cabinet (support padlock) | |
Material | Galvanized steel | |
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 1500W Air Conditioner and 2 fans |
Lighting | LED lamp | 48V LED lamp |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C |
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension W×D×H 800×800×1750mm (3) With one front door (4) Material: galvanized steel; |
2 | Air Conditioner | 1 | Set | 1500W Air Conditioner, AC220V power supply |
3 | 110V To 220V Transformer | 1 | Set | Used for air conditioner input |
4 | Fans | 2 | PC | 12038, DC48V |
5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof 2 x 63A/1P 2x32A/1P 2x16A/1P 2x10A/1P 2x5A/1P Height: 3U |
6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 90A, 4800W; Model: GPE4890J |
7 | Package | 1 | Set | Wooden Case |
8 | Sensor | Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp) |
5, Enclosure Cooling
1Set 1500W Air Conditioner, AC220V power supply
2 pcs DC48V fans.
6, Cabinet Structure
(1) External Dimension W×D×H 800×800×1750mm
(2) One compartment;
(3) With one front door; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel

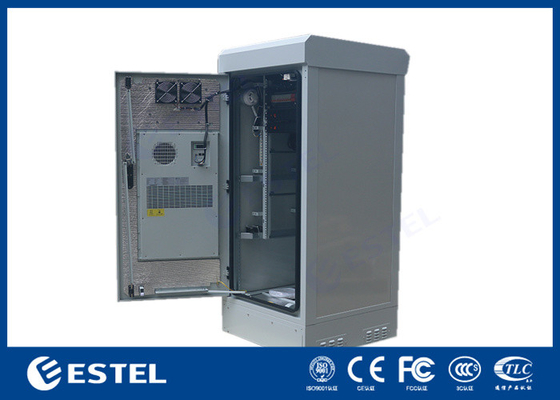

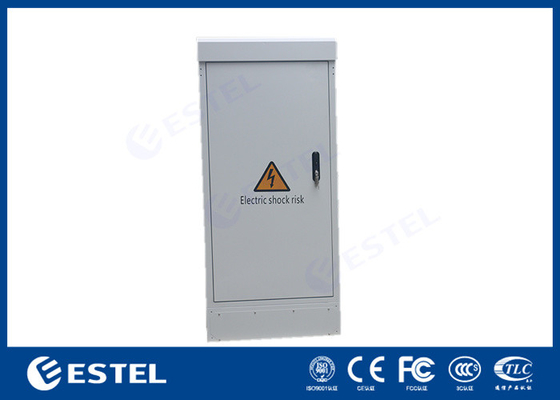

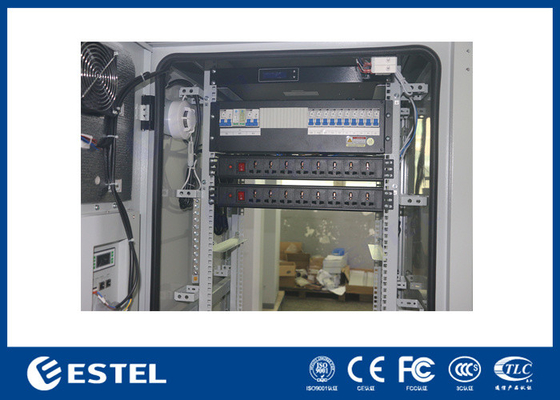

7, Cabinet Picture:
8, Embedded Power System
Process of Electric Connection
Electric connection between main cabinet and external component includes: connection of AC input line, connection of DC output and battery, connection of communication cables, connection of GND cables. The main requirements of electrical connection are safety and reliability.
