Layout: | One Compartment | Door: | Double Door, With One Front Door And One Back Door |
---|---|---|---|
Structure: | Assembled | Air Pressure: | 62kpa ~ 101kpa |
Relative Humidity: | 6% ~ 100% | Power Distribution Unit: | Grade B Lightning Proof Height: 3U |
1, Description Of IP55 Enclosure
IP55 Enclosure is suitable for the various environment including house electronic equipment, industrial process control, external plant, telecommunications equipment, food, and medical equipment, bespoke application and many more.IP55 enclosure provides complete protection against contact with live or moving parts inside the enclosure, thus add protection from water, up to water projected by a nozzle against enclosure from any direction.
2, Accessories Options Of The IP55 Enclosure
Fan kits
Cabinet insulation
Racks and shelving
Heating and cooling systems
Silk screening and digital printing
Custom locks, hinges and brackets
Lights, alarms and other electronics
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension W×D×H 700×700×1550mm |
Layout | One compartment | |
Equipment Installation Method | 19” standard rack | |
Door | Double Door, With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) | |
Material | Galvanized steel; double walls with heat insulation between two walls. | |
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 1200W Air Conditioner and two fans |
Lighting | LED lamp | 48V LED lamp |
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension W×D×H 700×700×1550mm (3) Double Door With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, with heat insulation between two walls. |
2 | Air Conditioner | 1 | Set | 1200W Air Conditioner, AC220V power supply |
3 | 110V To 220V Transformer | 1 | Set | Used for air conditioner input |
4 | Fans | 2 | PC | DC48V |
5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof Height: 3U |
6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 90A, 4800W; Model: GPE4890J |
7 | Package | 1 | Set | Wooden Case |
8 | Sensor | Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.) |
5, Enclosure Cooling
1Set 1200W Air Conditioner, AC220V power supply
Two Pcs DC48V fans.
6, Cabinet Structure
(1) External Dimension W×D×H 700×700×1550mm;
(2) One compartment;
(3) Material: galvanized steel; double walls,with heat insulation between two walls.

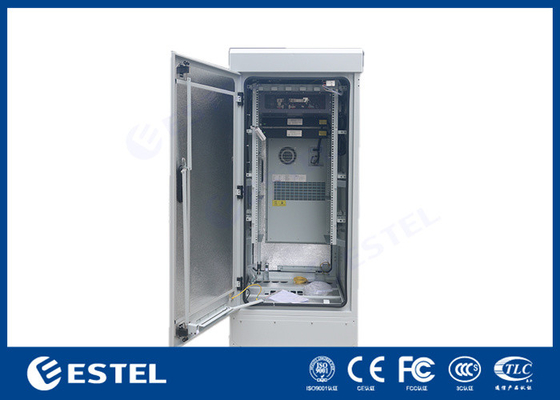

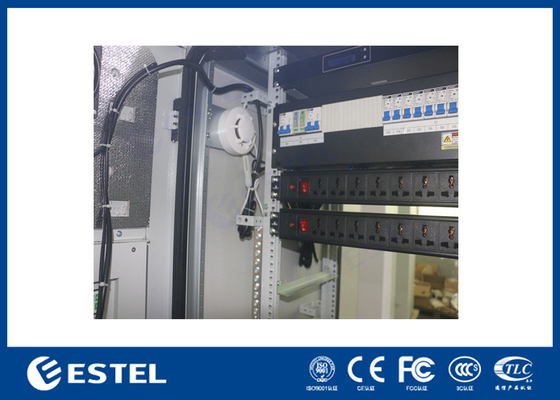

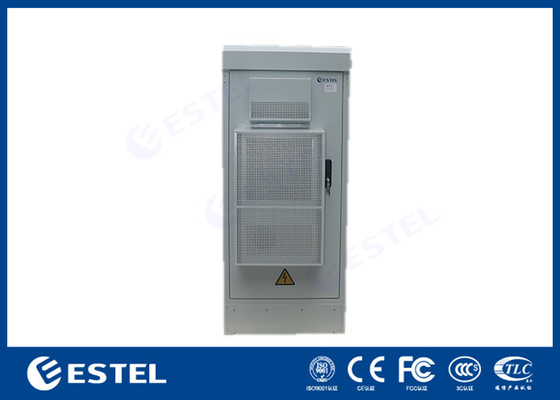

7, Cabinet Picture:
8, GPE4890J Embedded Power System Operating Principle
GPE4890J consists of distribution unit, rectifier module (up to 3 sets) and 1 monitoring module After AC power is controlled by the AC hydraulic switch and then through the EMI board lightning protection and filtering processing, into the rectifier module, AC hydraulic switch has the function of overload and short circuit protection to AC power. Under normal conditions, every parameter of rectifier modules and distribution unit are all under control of the monitoring module, operating
according to the pre-set parameter or user’s commands. If AC mains fault, the system will be powered by the battery. With the battery discharge, the terminal voltage of the battery starts to descend. When the battery voltage is under -46.2V±0.5V, the monitoring module reports battery under voltage alarm signal; When the battery voltage is under -45.6V±0.5V, close LVLD load output; When the battery voltage is under -43.2V±0.5V, close LVBD load output, then the power system stops working. When the external AC mains recovers, the system will resume to the normal work state. (All above monitoring data are system default values that users can reset).
