Installation: | Standard 19“ Rack | Dimension: | W×D×H 750×750×1550mm |
---|---|---|---|
Door: | Double Door | Working Temperature: | -40°C ~ +55°C |
Storage Temperature: | -50°C ~ + 70°C | Transport Temperature: | -50°C ~ +70°C |
1, Description Of Double Door Electrical Cabinet
As the name suggests, this refers to an electrical Cabinet design which comes with two doors.
Most of the double-door cabinets tend to be somewhat large in size.Also, they are suitable for a wide range of applications given that they’re stronger and spacious.What’s more is that the doors of this particular design are also lockable, which is fundamental since it prevents unauthorized access.So you can choose the particular design that you prefer depending on your needs.The cabinet is equipped with a power system, lightning protection and grounding system, temperature control system, lighting system, and user equipment installation space.
2, Selling points and Feature Of Double Door Electrical Cabinet
●Front and rear door to access the inside equipment
●Anti corrosion powder coating
●Standard 19“ rack for installation
●IP55 Protection Rate
●Cooling by air conditioner and Fans
● High integration, compact structure, easy installation and migration on later stage
3, Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Dimension W×D×H 750×750×1550mm |
Layout | One compartment | |
Equipment Installation Method | 19” standard rack, 20U | |
Door | Double Door, With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) | |
Material | Galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. | |
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | 1200W Air Conditioner and 2 fans |
Lighting | LED lamp | 48V LED lamp |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
4, Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H*W*D 1550*900*900mm ; (3) Double Door With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. |
2 | Air Conditioner | 1 | Set | 1200W Air Conditioner, AC220V power supply |
3 | 110V To 220V Transformer | 1 | Set | Used for air conditioner input |
4 | Fans | 2 | PC | DC48V |
5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof 2 x 63A/1P 2x32A/1P 2x16A/1P 2x10A/1P 2x5A/1P Height: 3U |
6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 90A, 4800W; Model: GPE4890J |
7 | Package | 1 | Set | Wooden Case |
8 | Sensor | Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.) |
5, Enclosure Cooling
1Set 1200W Air Conditioner, AC220V power supply
2 pcs DC48V fans.
6, Cabinet Structure
(1) External Dimension H*W*D 1550*900*900mm ;
(2) One compartment;
(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

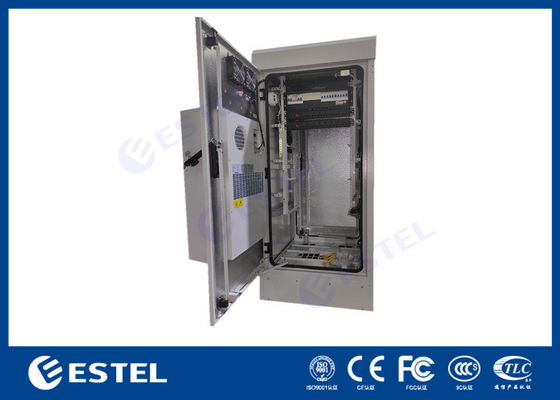

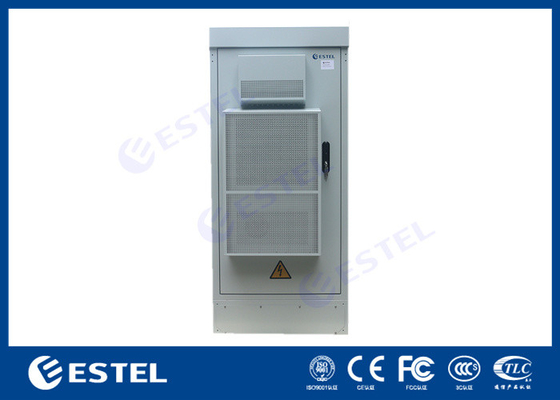

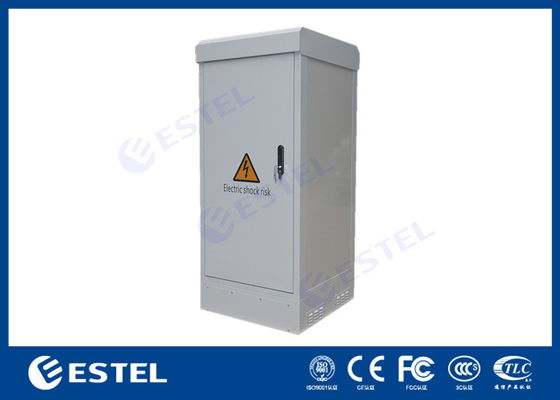

7, Cabinet Picture:
9, Power system
Dimensions (Overall) 482.6mm×265mm×88.1mm
Weight(kg) (Overall) ≤11kg (Inclusive of module) ≤5.175kg (Frame + Distribution, exclusive of module)
Application
> Small scale program controlled exchanger
> Access network
> Transmission equipment
> Mobile communication
> Satellite communication ground station
> Microwave communication
Installation
This is embedded power system. First insert it to the specified location till the system is well fixed. Keep the 4 fixing holes on the bracket in line with those on the cabinet and then screw up 4 M6
cross rounded head screws, with the spring washer and flat washer. At last finish the installation after
tightening the screw.
