Product Details:
Payment & Shipping Terms:
|
Cabinet Door: | One Front Door | Layout: | 1 Compartment |
---|---|---|---|
Certificates: | CE | External Size: | W×D×H 800×600×1000mm |
Material: | Galvanized Steel | Color: | Grey / Optional |
Cooling System: | 2 Fans | IP Rating: | IP65 |

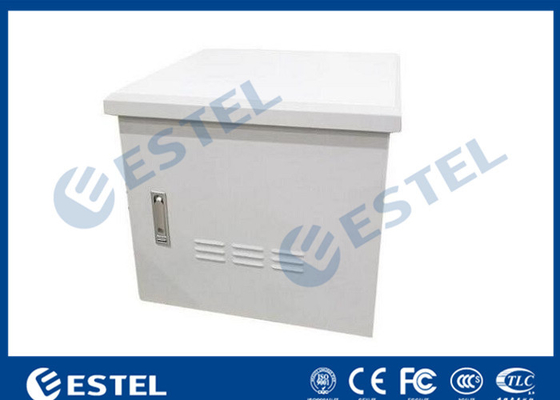

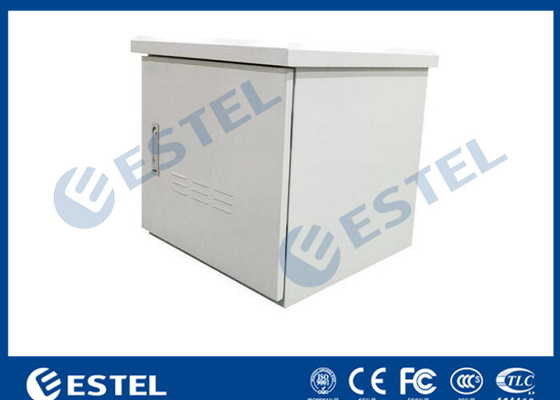

Anti-corrosion Outdoor Telecom Cabinet Temperature Control With One Front Door
1. Cabinet Overview
The outdoor cabinets are widely used for Telecom, Power, Electricity and so on, in 4G and coming 5G, smaller size outdoor cabinet will be more and more used to substitute the shelter of the Base Station, also used for the broadband and optical fiber hub. We provide the Outdoor Cabinet, and solution integrated with temperature controlling, power supply, monitoring systems and so on, customized with enough discussion with customers, the users only need to put main equipment inside.
2.Cabinet Feature
1. Solid structure with high quality materials;
2. Customized solution design;
3. Double Layer structure, for outdoor application;
4. Waterproof, Anti-corrosion, Durable;
5. High protection level IP65;
6. Temperature controlling and good cooling solution;
7. Scratch-proof surface with powder coating on demand;
8. Easy installation and maintenance.
3.Cabinet Parameters
Outdoor Cabinet Configuration | |
Cabinet Dimension |
Customized design n demand Height Space: 9U to 42U on demand Width: 600mm, 800mm, 1200mm or others on demand Depth: 600mm, 800mm, or others on demand |
Materials |
Option 01: High quality cold-rolled steel, or galvanized steel Option 02: Frame + PU Sandwich Panel Option 03: Stainless Steel materials S.S.201/304/316 Frame materials thickness: 1.5mm, 2.0mm Panel materials thickness: 1.0mm, 1.2mm, 1.5mm |
Cabinet Structure |
Double layer insulation structure Customized design as per the equipment requirements |
Cabinet Surface |
Powder Coating Color: RAL7035 or other on demand |
Installation Rack |
19” or 21” standard installation rack Silkscreen with Standard “U” marks Separate battery cabin or rack |
Locking system | Safe lock system, 3 point or 4 point locking |
Protection Level | IP55, IP65, IP68 |
Cable Entry |
With Base Plinth From Bottom, Entry hole sizes on demand |
Installation |
Floor mounting on base Wall or Pole mounting for small size cabinet |
Temperature Controlling System | |
Air Conditioner Type |
Air Conditioner 600W, 800W, 1000W, 1200W, 1500W AC or DC power input TEC Air Conditioner |
Heat Exchanger Type | Power Rate as per request |
Fan cooling Type | Fan for structure cooling flow |
Mixed Type | On demand of customer |
Power Supply System (For Option) | |
Power Distribution Unit |
AC Power Distribution and DC Power Distribution Switch Ways as per equipment |
AC/DC Switch Power | On demand, Optional |
DC/AC inverter | On demand, Optional |
Oil machine interface | On demand, Optional |
Battery | Iron lithium battery or Accumulator Battery, Optional |
Environmental Monitoring System (For Option) | |
EMS Unit | On demand, Optional |
Sensors |
Door Access Sensor Temperature and Humidity Sensor Smoke Sensor Water Immersion Sensor Optional |
Other Equipment and Fixtures | |
Lighting System | LED light, with door access switch |
Grounding Bar | 2pcs Grounding Bars |
ODF Subrack | On demand, Optional |
MDF Line | On demand, Optional |

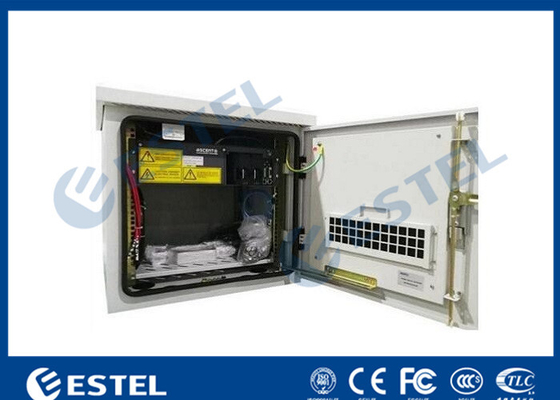

4. Cabinet Intrenal Picture
5. Cabinet Package
Wooden case with pallets
