Product Details:
Payment & Shipping Terms:
|
Cabinet Door: | 1 Front Door | Layout: | 1 Compartment |
---|---|---|---|
Certificates: | CE | External Size: | W×D×H 900×900×1800mm |
Material: | Galvanized Steel | Color: | Grey / Optional |
Cooling System: | Air Conditioner | IP Rating: | IP55 |

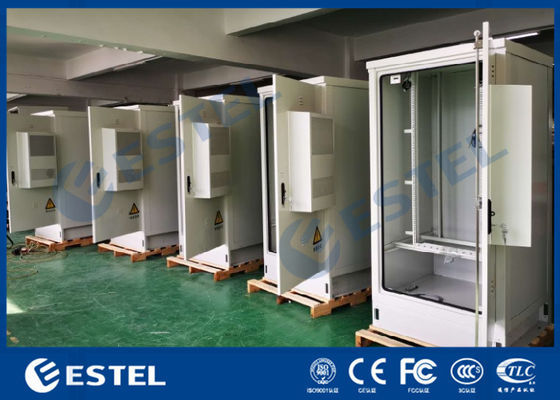

IP55 One Front Door Air Conditioner Cooling Outdoor Telecom Cabinet
1. Cabinet Overview
Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, It a new design, support floor mounting, pole mounting, wall mounting optional. It has water sensor, door sensor, temperature sensor, smoke sensor, and humidity sensor inside. This series enclosure offers the ideal enclosure solution to build the whole base station inside.
2.Cabinet Specifications
Items | Technical Parameter |
Dimension |
External Dimension: W×D×H 900×900×1800mm |
Layout | 1 compartment |
Equipment Installation Method | 19” rack |
Doors | With one front door , and anti-theft three point lock for outdoor cabinet (support padlock). |
Material | Galvanized Steel, single wall with insulation |
Ingress Protection | IP55 |
Temperature Control | Air conditioner |
Lighting | 48V LED lamps |
Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | |
Transport Temperature: -50°C ~ +70°C | |
Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
Environment Monitoring Unit | 1U, DC48V |
Alarm sensors | Water sensor Smoke sensor Temperature and Humidity sensor Shock sensor Door sensor |
Power Distribution Unit | Grade B Lightning Proof |
Package | Wooden Case with pallet |
3. Components Installation
(1) LED lamp, smoke sensor and door sensor are installed at the top of the cabinet.
(2) Environment Monitoring Unit and PDU are installed on 19” rack.
(3) Air Conditioner is installed on the front door of the cabinet.
4. Cable Inlets
Cable inlets are at the bottom of the cabinet
5. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
