|Monitoring Unit:||1U, DC48V||Layout:||One Compartment|
|Certificates:||CE||External Size:||W*D*H 900*800*2100mm|
|Material:||Galvanized, Double Wall With Insulation||Color:||Grey / Optional|
|Cooling System:||Air Conditioner||IP Rating:||IP55|
Air Conditioner Integrated Galvanized Steel Outdoor Battery Cabinet With Three Battery Layers
1. Cabinet Advantage
|1||Ease of access||All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.|
|2||Ease of Maintenance||Most power and control modules are provided in sub-assembled chassis with plug and socket connection for easy serviceability and minimized spare part inventory.|
|3||Low MTTRaintenance||Due to the ease of access to internal components and the plug-and-socket subassemblies in addition to the availability of self-diagnostic PCB, It is accredited for exceptionally low mean time to repair (MTTR).|
|4||Ease of installation||Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible. Top entry is available upon request.|
|5||Ease of adjustment||Output voltage, current limits and alarm levels are easily adjustable.|
2. Cabinet Features
2.1 Dimensions: W*D*H 900*800*2100mm,
2.2 Standard 19” Rack Mountable Equipment.
2.3 Dustproof, Sunproof and Rainproof.
2.4 Layout : one compartment
2.5 Electrical Grounding bar inside.
2.6 Doors: Lockable, With 1 front doors, and anti-theft 3-point lock with padlock optional.
2.7 Installation mode: installed on a concrete floor.
2.8 Heat Insulation: 20mm PEF heat insulation between inner wall and outer wall.
2.9 Cabling mode: routed in and out from the bottom.
2.10 Including -48VDC illumination lamp.
2.11 Accessories: PDU, Monitor, Light, Alarm Sensors (Based on request),Batteries.
2.12 Temperature Control: AC220V air conditioner
2.13 Protection level:IP55.
3. Cabinet Instructions
For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
This battery cabinet is 2100mm High and 900mm Wide and 800mm Deep. It comes with 3 battery layers battery layers. This cabinet is the ultimate choice for outdoor racking requirements.

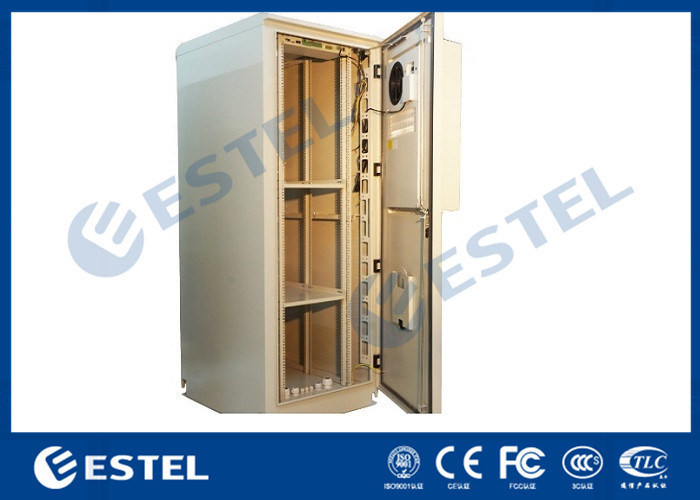

4. Internal Components
There are three layers for battery installation inside the cabinet
There is one air conditioner installed on the front door to cool the systemt
There are cable holes at the bottom of the cabinet
There is one ground bar at the bottom of the cabinet

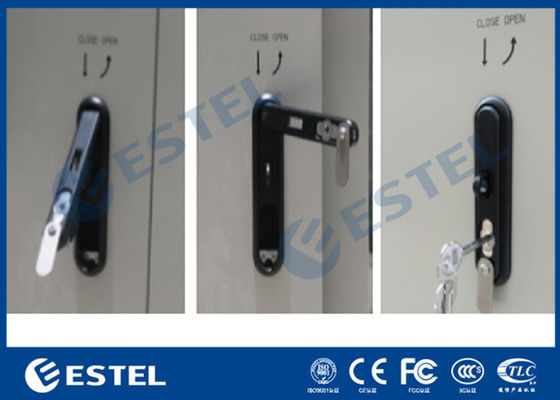

5.Cabinet Door Lock
Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
Three point lock
6. Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Year
