|External Dimension:||H*W*D 1150*650*650mm||Layout:||1 Compartment|
|Material:||Galvanized Steel, Single Wall||Cooling:||Heat Exchanger And Fan|
|IP Grade:||IP55||Cabinet Door:||With One Front Door|

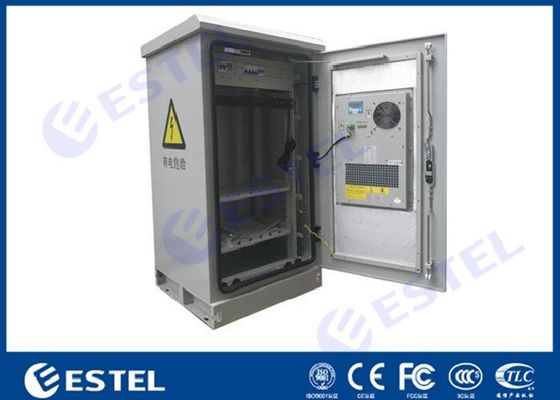

Heat Exchanger Cooling System Outdoor Telecom Cabinet Galvanized Steel With One Front Door
1. Cabinet Instruction
The ET6565115-EQ Outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cooling: heat exchanger and fan.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Cabinet Parameters
|Structure||Dimension||External Size H*W*D 1150*650*650mm|
|Layout||One compartment, used for installing 19” equipment|
|Equipment Installation Method||19” rack|
|Door||With one front door, and anti-theft three point lock for outdoor cabinet (support padlock)|
|Material||Galvanized steel, single wall + heat insulation: 1.5mm outer steel plate + 20mm inner insulation|
|Temperature Control||Cooling||Heat exchanger and fan|
|Temperature||Temperature||Working Temperature: -40°C ~ +70°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1120 ×(1±5%)W/m2|
4. Cabinet Drawing
5.Cabinet Cooling System
The cabinet has one heat exchange with 80W/K cooling capacity installed on the fornt door.
Wooden case with pallets.
