External Dimension: | W×D×H 400×315×606mm | Layout: | 1 Compartment |
---|---|---|---|
Material: | Galvanized Steel | Cooling: | Air Conditioner |
IP Grade: | IP55 | Equipment Installation Metho: | 4 Trays |

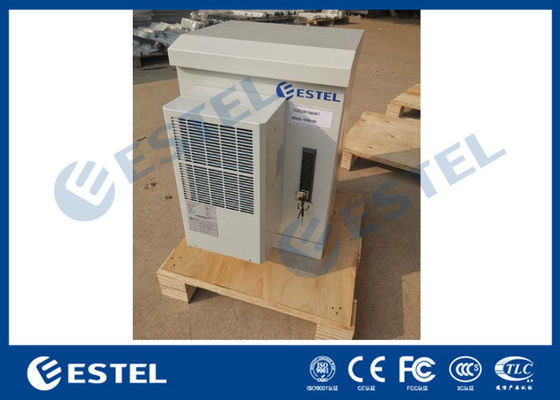

Small Size Integrated Galvanized Steel Double Wall Outdoor Telecom Cabinet IP55
1.Cabinet Description
This series IP55 Outdoor cabinet with rear back access offers the ideal enclosure solution to build the whole base station inside.The cabinets system can support Electrical equipments,PDU,Backup batteries,Mornitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.
2. Cabinet Parameters
Configuration | Item | Technical Parameter |
Cabinet Body | Model | ET403160 |
Size | External Dimension: W×D×H 400×315×606mm (Including base height) | |
Component | 1 Compartment | |
Material | Galvanized steel, double wall, outer wall is 1.5mm, inner wall is 0.5mm, between two wall there is 25mm insulation. | |
Structure |
|
|
Surface Treatment | Deoil, acid pickling, phosphating, electrostatic spraying, high temperature solidification | |
Color | Anti-corrosion outdoor powder coating RAL7035 | |
Ingress Protection | IP55 | |
Working Temperature | -40°C~+85°C | |
Cooling Method |
Air Conditioner
|
Cooling capacity: 300W |
3.Cabinet Dimension
External Dimension: W×D×H 400×315×606mm (Including base height)
4.Cabinet Features
4.1 The cabinet is IP55 protection level
4.2 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
4.3 Good quality galvanized steel,double wall with insulation.
4.4 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated
4.5 Cabinets cooling uses air conditiioner
4.6 There are entrance holes at the bottom of the cabinet
4.7 Including -48VDC illumination lamp.
4.8 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
4.9 Floor mounting type
4.10 CE certificate
5.Cooling System
There is one air conditoner installed on the front door.
6. Internal Installation Pictures
There are 4 trays inside the cabinet,which is used for installing the equipment.
7.Production Picture
