IP55 Triple Bay Racking Outdoor Telecom Enclosure With Air Conditoner Cooling System

IP55 Triple Bay Racking Outdoor Telecom Enclosure With Air Conditoner Cooling System

1.Enclosure Overview

• Triple Bay Enclosure is 2400mm High and 2400mm Wide and 900mm Deep. It comes with 2 Sets of Standard 19″ Racking Rails and 4 battery layers.

• Standard Racking Hub that will allow you side by side.This triple bay enclosures are the ultimate choice for outdoor racking requirements.

• For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options.

• It provides a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.

• It provides a secure,climate controlled environment for any electronic equipment.

2.Enclosure Application

• Fiber Optics

• Base Station

• Small Cell/DAS

• Utility - Traffic

• Trailer-based Communications

3. Enclosure Features

• Green color

• External dimentions is W*D*H 2400*900*2400mm

• Top cover, shades cabinet from the sun.

• Galvanized steel

• Zinc Die Powder-coated

• Three front doors,with anti-theft three point lock

• Individual cable entry holes from bottom of the cabinet

• IP55 protection level

• 2 sets of adjustable 19″ racking rails

• 4 battery layers

• Cooling system uses aire conditioners

• The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional

• Flame retardant comply with GB5169.7 test A

• CE certificates

• Floor mounting type

• Package:Wooden case

4.Enclosure Iternal Instruction

4.1 Cable Entry Holes

There are entrance holes individually for feeder cable and other external cables.

4.2. Anti-loose threaded connection

• Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.

• Door hings use inner hinge mode.

5. Cooling System

220VAC Air Conditioner, 3 pcs , installing on the 3 doors.

The air conditioner uses utility power input, allowing wide voltage range (±30%), with high energy efficiency ratio. The air conditioner controller is digital display temperature controller, with easy operation and straight display. The controller has 6 relay outputs, which respectively control internal circulation fans, external circulation fans, cooling compressor, heater, hydrogen exhaust fan and a reserve output way. The controller has fault detection and alarm function and can transmit fault alarm signals to monitoring center. The air conditioner integrated universal intelligent controller, supporting 7×24 hours continuous operation.

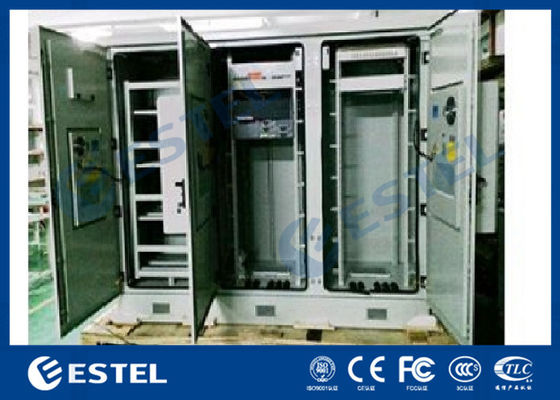

6. Product Pictures
