Air Conditioner Type Outdoor Power Cabinet For Installing 19” Equipment and Battery
Outdoor power cabinet provides flexible size options, offers the ideal enclosure solution to build the whole base station inside. The cabinets system can support Electrical equipments, UPS, PDU, Backup batteries, Mornitoring system and etc.
2. Cabinet Key Features
2.1 Effective thermal management
It is designed with a unique spot cooling thermal management design that qualifies the system to satisfactorily operate at ambient temperature more than 45 C.
2.2 High reliability
This Series inverters are designed for high reliability as components are selected with high de-rating factors to assure maximum MTBF.
2.3.Long design life
Components are carefully selected to provide system that operate at extreme ambient conditions with life expectancy in excess of 20 years.
Enclosures are industrial grade that are made of firmly welded heavy-gauge steel with an attractive, long-lasting powder textured coating (RAL 7032). Standard cabinets are IP55. Other protection classes and colors are available upon request.
2.5 Ease of access
All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.
2.6 Ease of maintenance
Most power and control modules are provided in sub-assembled chassis with plug and socket connection for easy serviceability and minimized spare part inventory.
2.7 Ease of installation
Cabinets are floor mountable with bottom entry equipped for cable or conduit entrance. Input, output and remote alarm connections are wired to internal terminal lugs that are easily accessible. Top entry is available upon request.
2.8Ease of adjustment
Output voltage,current limits and alarm levels are easily adjustable.
3. Cabinet Specifications
External Dimension optional :
|Galvanized steel /Stainless steel optional
|Double wall heat insulation structure,The insulation material is 20mm PEF.
|There are heat insulation between inner wall and outer wall.
|AC220V air conditioner or DC48V fans
|Lithium battery,PDU, UPS, Monitor, Light, Alarm sensors(Based on request) PDU outlet. Monitor. Light. Alarm. Sensor (Based on request)
|Water sensor, Door sensor, Smoke sensor, Temperature sensor and Humidity sensor
|DC48V LED lamp
|Comply with GB5169.7 test A
|Switching Mode Power Supply
|Available upon request
|Working Temperature:-40°C ~ +55°C
|Storage Temperature:-50°C ~ + 70°C
|Transport Temperature:-50°C ~ +70°C
|Wooden case with pallets
4. Cable Inlet
External cables and feeder cable all use bottom wiring method
5. Components Installation
5.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet.
Environment Monitoring Unit and PDU are installed on 19” rack.
5.2 Air Conditioner and fans are installed on the door of the cabinet.
6. Grounding Protection
6.1The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
6.2The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.
6.3Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.
7. Theft Proof Design
7.1 Door lock theft proof design
1.Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
2.Three point lock
7.2 Connection and Fastening

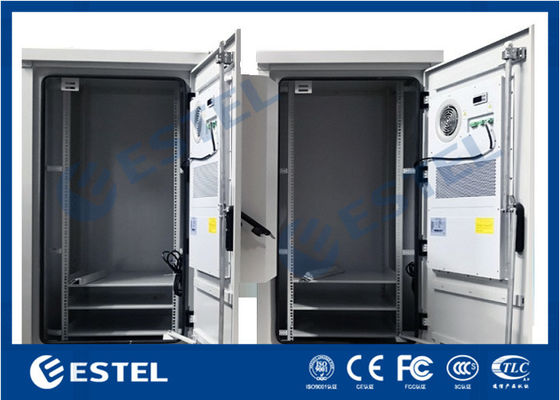

8. Product Pictures
