1.Cabinet Instruction

Double Bay Outdoor Integrated Cabinet offers standard 19” racking rails, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.

2. Cabinet Key Features

2.1 Highly stable and rigid construction,W*D*H 1800*900*1800mm
2.2 Good quality galvanized steel

2.3 Dustproof, sunproof and rainproof used in outdoor environment.

2.4 Including 19” standard installation rack.

2.5 The cabinets system can support Electrical equipments, PDU, Mornitoring system and etc.
2.6 The cabinet cooling uses air conditioner with 2000W cooling capasity.

2.7 Switching mode power supplies are available upon request.

2.8 Including -48VDC illumination lamp.

2.9 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

2.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A

2.11 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

2.12 IP55 protection level.

2.13 Floor mounting type

3. Components Installation

3.1 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.

Environment Monitoring Unit and PDU are installed on 19” rack.

3.2 Air Conditioners and fans are installed on the door of the enclosure.

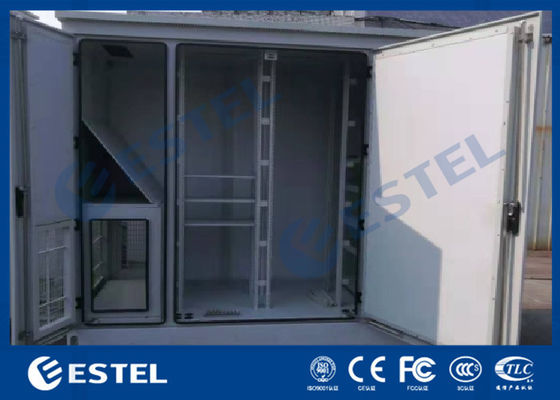

4.Product Internal Pictures
