IP55 Three Compartment Outdoor Electronic Equipment Cabinets With Air Conditioner

IP55 Three Compartment Outdoor Electronic Equipment Cabinets With Air Conditioner

1.Cabinet Overview

This series there compartment is a perfect choice for outdoor racking requirements.It offers a secure,climate controlled environment for any electronic equipment. Being made of galnarized steel,it’s strong enough to rack even the heaviest equipment.For those who need more than just standard enclosure, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions.

2.Cabinet Features

• Gray color

• External dimentions is W*D*H 2400*900*1800mm

• Galvanized steel single wall

• Top cover shades cabinet from the sun

• Three anti-theft front doors

• Anti-theft three point lock

• Individual cable entry holes from bottom of the cabinet

• Cooling system uses aire conditioner and fan.

• The door sensor, water sensor, smoke sensor, temperature and humidity sensor optional

• Flame retardant comply with GB5169.7 test A

• Package:Wooden case with pallets

• IP55 protection level

• CE certificates

• Floor mounting type

3. Cabinet Application Types

Suitable used for Telecommunications,Base station,Trailer-based communications,Fiber Optics and Military and etc.

4. Cable Entry Holes

There are entrance holes individually for feeder cable and other external cables.

5. Cable Connections

• Use anti-loose threaded connection as structure and bearer connection.Anchor bolt for fixing cabinet use hot dip galvanized bolts.

• Door hings use inner hinge mode.

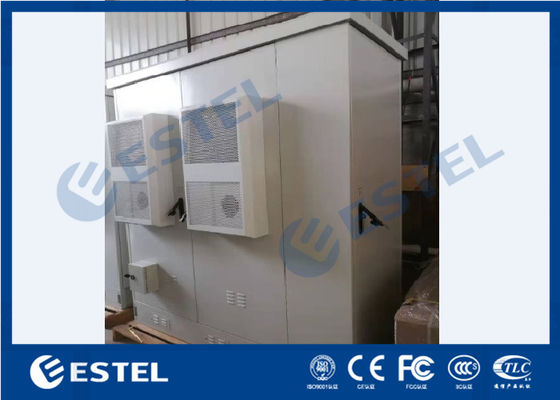

6. Product Pictures
