Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System

China Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System supplier
Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System supplier Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System supplier Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System supplier Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System supplier

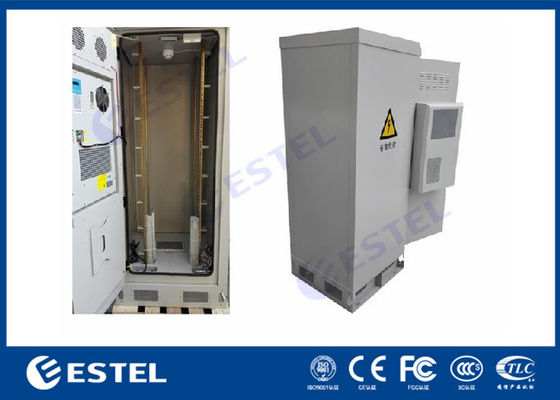

Large Image :  Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System

Product Details:

Place of Origin: CHINA
Brand Name: ESTEL
Certification: CE, FCC,3C, TLC,ISO9001, IP55
Model Number: G1114124001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Sets Per Month
Contact Now
Detailed Product Description
Size: 800*800*2000mm IP Grade: IP55 / IP65 , Others
Material: Galvanized Steel, Cold Rolling Steel/Stainless Steel Color: RAL7035, Pearl White, Grey, Black, Sliver-Gray, Customized / Optional
Style: Air Conditioner Outdoor Cabinet, Customized Usage: Control, Communication, Power Supply, Terminal, Swith, Customized



Quick Details:

Place of Origin: Shenzhen, PR.China External Size H×W×D 2000×800×800mm
Brand Name: ESTEL Structure: double wall, with insulation, sandwich structure.
Model Number: G1114124001 Cabinet Layout: one compartment for 19” equipment installation
Product Name: Outdoor Telecom Equipment Cabinet Cabinet Lock: anti-theft three point lock
Certification: ISO9001, CE, 3C, FCC, TLC, IP55 Protection Level: IP55
Application: outdoor telecom base station, telecom tower Cable Entry: from cabinet bottom
Material: galvanized steel (support custom made) Illumination: DC48V LED lamp
Heat Insulation: PEF Grounding Protection: copper bar
Color: grey (support custom made) Cooling: AC220V Air Conditioner and DC48V Fans
Coating: anti-corrosion outdoor powder coating Accessories Options: Environment monitoring system





1. Specifications

(1) Technical Parameters

Item Type

Technical Parameter

Structure Dimension

External Dimension: W*D*H 800*800*2000mm

Layout 1 compartment
Equipment Installation  19” rack
Door With one front door, and special lock for outdoor cabinet (support padlock)
Material Galvanized steel, 1.5mm thick outer plate, 0.8mm thick inner plate
Heat Insulation There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.
Structure Welded or assembled
Ingress Protection IP55
Temperature Control Cooling AC220V air conditioner and DC48V fans
Lighting LED lamp 48V LED lamps (immovable), with protective circuit breaker
Temperature Temperature Working Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1120 ×(1±5%)W/m2



(2)Accessories List

 No. Item Quantity Unit Specs
 1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension: W*D*H 800*800*2000mm

(2) One compartment: equipment compartment

(3)With one front door, and special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate;

(5)There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF.

 2 Air Conditioner 1 Set

Power supply: AC220V, 50HZ,

Cooling capacity: 1.5KW,

Model:TC06-150JFH/01

 3 Auxiliary Direct Ventilation Fans 2 PC 12038 DC48V
 4 Environment Monitoring Unit (Optional) 1 Set 1U,SNMP
 5 Water Sensor 1 PC
 6 Smoke Sensor 1 PC
 7 Door Sensor 2 PC One for controlling LED lamp, the other for open door alarm
 8 LED Lamp 1 PC DC48V
 9 Package 1 Set Wooden Case





2. Applications

The G1114124001 Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, 4G/5G system, access/transmission switching station, emergency communication/transmission, etc.





3. Cabinet Description

3.1 Cabinet Structure And Material

The cabinet is equipment cabinet, including 19” equipment mounting frame, with an air conditioner and fans on the door of the cabinet .

The cabinet is made of galvanized steel, with double walls, the thickness of cabinet which the  outer plate is 1.5mm and inner plate is 0.8mm . There is heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.



3.2 Cabinet Door and Lock

The cabinet door adopts embedded structure. The door opening angle is more than 110°and the door threshold device can limit the opening angle. The lock is anti-theft three point lock, supporting padlock. Each cabinet door  is equipped with an open door sensor, working  with the environmental monitoring unit.





4. Features

4.1 The outdoor cabinet is dustproof, sunproof and rainproof.

4.2 The cabinet cool using air conditioner and fans.

4.3 Equipped with -48VDC illumination lighting.

4.4 The layout of the cabinet is reasonable, which facilitating cable access, fixing and grounding. At the bottom of the cabinet, there are entry holes individually for power cable, signal cable and optical cable.

4.5 All the cables, sealing and heat insulation used in the cabinet are made of flame retardant materials.

4.6 The cabinet includes 19” standard mounting rack.

4.7 Material: high quality galvanized steel

4.8 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

4.9 Cabinet load bearing: ≥600kg

4.10 Ingress protection: IP55

4.11 Flame retardance: comply with GB5169.7 test A

4.12 Mechanical strength: each surface can bear upright pressure >980N; after the door is open, its outer end can bear upright pressure >200N.

4.13 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2×104M/500V(DC).

4.14 Withstand voltage: the withstand voltage between grounding devices and cabinet body  is not less than 3000V(DC)/1min.





5. Components Installation

5.1 LED lamp, smoke sensor and door sensor are installed at the top of the cabinet.

5.2 Air Conditioner and fans are installed on the door of the cabinet.





6. Cable Inlet

Feeder cable and other external cables are accessed at the  bottom of cabinet.

Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System







7. Grounding Protection

Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System



  • The cabinet is equipped grounding copper bar with anticorrosive coating. There are enough screws for wiring  terminals.
  • The metal part of the cabinet should be interconnected and be connected to the grounding bar. The connection resistance between any two points is less than 0.1Ω.
  • Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.





8. Anti-theft Design

8.1 Anti-theft design of door lock

  • Three point lock

Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System



  • Damage resistance of the antitheft lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System

8.2 Connection and Fastening

(1) Anti-loosing thread is used  as structure and bearing connection. The anchor bolts for fixed cabinet are hot dip galvanized bolts.

(2) Door hinges use inner hinge mode.



Double Wall Outdoor Telecom Cabinet Air Conditioner Cooling With Rectifier System



8.3 Appearance and Surface Treatment

Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.
