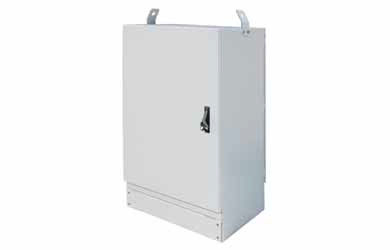

Single Wall Insulated Aluminum Single Access Dual Access Outdoor Cabinet
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Equipment Installation: | Standard 19" Rack | Protection: | IP55 |
|---|---|---|---|
| Door: | Aluminum, 2.5 Mm, RAL 7035, | Material: | Aluminum, Single Wall, 2.5mm Thickness+12mm Heat Insulation |
| Plinth: | Aluminum, 3 Mm, Height 140 Mm | Size: | WxDxH 800x500x600mm |
Single Wall Insulated Aluminum Single Access Dual Access Outdoor Cabinet
Single access Dual access
Dual access Single access
Height of door opening = H - 270 mm;
width of door opening = W - 100 mm
• Single wall, lightweight aluminium cabinet
• Insulated cabinet
• IP 55
• 2 versions with plinth
• Single access (front door)
• Dual access (front and rear door)
Technical Parameter
| Item | Qty | Description |
| 1 | 1 |
Body, Al, 2.5 mm, RAL 7035, single wall side panels, insulation thickness 12 mm, non inflammable; 3 cable entry boots are mounted in base for various sizes of cables, 2 removeable lifting brackets |
| 2 | 1/2 |
Door, Al, 2.5 mm, RAL 7035, 3-point locking, lever handle with DIN profile half cylinder (1242E), door opening angle 135°, door retainer at 110°, door hinged on left hand side; electrical door switch |
| 3 | 1 | Plinth, Al, 3 mm, height 140 mm |
| 4 | 2 | 19"/23" panel/slide mounts, galvanised St, 2.5 mm |
| 5 | 1 | Document pocket, thermoplastic |
| 6 | 1 | GND/earthing kit, assembled |
Size
|
Height H U |
Height H mm |
Width W mm |
Depth D mm |
| 12 | 600 | 800 | 500 |
| 25 | 1200 | 800 | 600 |
19"/23" PANEL/SLIDE MOUNT KIT FOR COMLINE FTTX
• For fitting to depth member (25 mm grid)
• For recessed installation of 19"/23" components
• Slide rails can be fitted
• Load-carrying capacity 400 kg
Technical Spec
| Item | Qty | Description |
| 1 | 2 | 19"/23" panel/slide mount, St, galvanised, 2.5 mm |
| 2 | 1 | Assembly kit |
Cable Entry
• For cable ducting through the base of the cabinet
| Item | Qty | Description |
| 1 | 3 | Cable entry, for cable diameter 30 ... 72 mm, EPDM, RAL 7035 |
