Door: | One Front Door | Equipment Installation: | Standard 19" Rack |
---|---|---|---|
Protection: | IP55 | Inner Space: | 24U |
Coating: | Anti Corrosion Powder Coating | Cooling: | Air Conditioner And Fan |
Light: | -48VDC | Theft Proof Design: | Three Point Anti-theft Lock, Inner Hinge Mode |

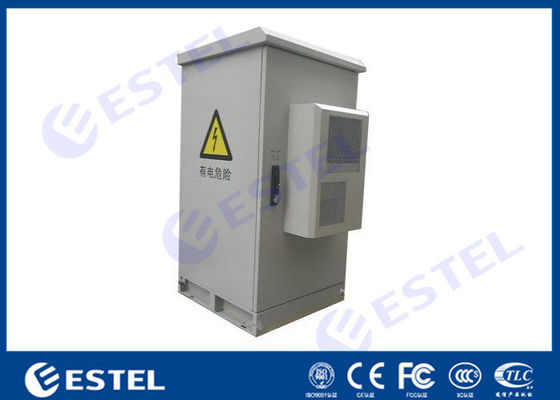

24U Temperature Control Outdoor Telecom Cabinet Single Wall With Heat Insulation 19 Inch Equipment Cabinet
1. Application
The ET6565130-EQ Outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.
2. Features
(1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cooling: air conditioner and fan.
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Technical Parameters
Item | Type | Technical Parameter |
Structure | Dimension | External Size H*W*D 1300*650*650mm |
Layout | One compartment, used for installing 19” equipment | |
Equipment Installation Method | 19” rack | |
Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
Material |
Galvanized steel, single wall + heat insulation: 1.5mm outer steel plate + 20mm inner insulation (Option: galvanized steel, double wall+heat insulation, 1.5mm outer plate, 0.8mm inner plate, there is 20mm insulation between two plate) |
|
Structure | Assembled | |
Ingress Protection | IP55 | |
Temperature Control | Cooling | Air conditioner and fan |
Lighting | LED lamp | DC48V |
Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
Storage Temperature: -50°C ~ + 70°C | ||
Transport Temperature: -50°C ~ +70°C | ||
Humidity | Relative Humidity | 5% ~ 100% |
Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
4. Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1300×650×650mm ; (2)One compartment: including 24U 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: Galvanized steel; single wall + heat insulati: 1.5mm outer steel plate+ 20mm inner insulation (Option: galvanized steel; double wall+heat insulation, 1.5mm outer plate, 0.8mm inner plate, there is 20mm insulation between two plate) |
2 | Air Conditioner | 1 | Set |
Cooling Capacity: 500W;
Power Supply: 220VAC, 50Hz |
3 | Fan | 2 | Set | DC48V |
4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
5 | LED Lamp | 1 | PC | DC48V |
6 | Package | 1 | Set | Wooden Case |
5.Cabinet Drawing
External Dimension H×W×D 1300×650×650mm(19”, 24U);
