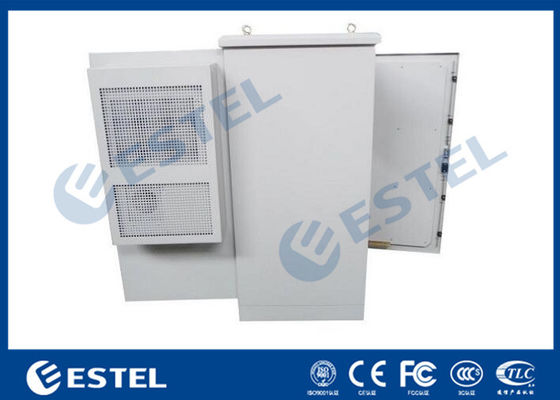

27U Air Conditioner Type Energy Saving Outdoor Communication Cabinets With One Front Door and One Rear Door
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| External Dimension: | W×D×H 650×650×1400m | Structure: | Double Wall With Insulation |
|---|---|---|---|
| Door: | Two Doors, One Front Door And One Back Door | Material: | Galvanized Steel |
| Color: | RAL7035 Powder Coating(support Custom Made,such As Green Etc) | Coating: | Anti-corrosion Outdoor Powder Coating |
| Space: | 19", 27U | Cable Entry: | At Cabinet Bottom |
| Grounding Protection: | Copper Bar | Protection: | IP55, Water Proof, Dust Proof,sunproof, Anti-corrosion |
| Relative Humidity: | 5% ~ 100% | Working Temperature: | -40°C ~ +55°C |
27U Air Conditioner Type Energy Saving Outdoor Communication Cabinets With One Front Door and One Rear Door
1. Specifications
Dimension: 650*650*1400mm(W*D*H)
Space Capacity: 27U
Structure: One Cabin, Two doors
Materials: High quality galvanized steel
Cooling Way: Air Conditioner type
Color: RAL7035 powder coating, or other color on demand
Installation: Floor/Ground Mounting
Protection Level: IP55/IP65
2. Applications
The cabinet is suitable for outdoor environment, such as road side, park, building roof, mountain area, flat ground, etc.
The cabinet can be installed with base station equipments, power supply equipments, batteries, temperature control equipments, transmission equipments and other equipments, or the cabinet can reserve installation space and heat exchange capacity for the above equipments, providing reliable mechanical and environmental protection for normal operation of the internal equipments.
The cabinet is mainly used in wireless communication base station, such as 4G, communication/network integrated service, access/transmission switching station, emergency communication/transmission
3. Product Advantages Introduction
4. Various Cabinets
| Outdoor Cabinet Configuration | ||
| Cabinet Dimension |
Customized design n demand Height Space: 9U to 42U on demand Width: 600mm, 800mm, 1200mm or others on demand Depth: 600mm, 800mm, or others on demand |
|
| Materials |
Option 01: High quality cold-rolled steel, or galvanized steel Option 02: Frame + PU Sandwich Panel Option 03: Stainless Steel materials S.S.201/304/316 Frame materials thickness: 1.5mm, 2.0mm Panel materials thickness: 1.0mm, 1.2mm, 1.5mm |
|
| Cabinet Structure |
Double layer insulation structure One Cabin, two or three Cabin, on demand Customized design as per the equipment requirements |
|
| Cabinet Surface |
Powder Coating Color: RAL7035 or other on demand |
|
| Installation Rack |
19” or 21” standard installation rack Silkscreen with Standard “U” marks Separate battery cabin or rack |
|
| Locking system | Safe lock system, 3 point or 4 point locking | |
| Protection Level | IP55, IP65, IP68 | |
| Cable Entry |
With Base Plinth From Bottom, Entry hole sizes on demand |
|
| Installation |
Floor mounting on base Wall or Pole mounting for small size cabinet |
|
| Temperature Controlling System | ||
| Air Conditioner Type |
Air Conditioner 600W, 800W, 1000W, 1200W, 1500W AC or DC power input TEC Air Conditioner |
|
| Heat Exchanger Type | Power Rate as per request | |
| Fan cooling Type | Fan for structure cooling flow | |
| Mixed Type | On demand of customer | |
| Power Supply System (For Option) | ||
| Power Distribution Unit |
AC Power Distribution and DC Power Distribution Switch Ways as per equipment |
|
| AC/DC Switch Power | On demand, Optional | |
| DC/AC inverter | On demand, Optional | |
| Oil machine interface | On demand, Optional | |
| Battery | Iron lithium battery or Accumulator Battery, Optional | |
| Environmental Monitoring System (For Option) | ||
| EMS Unit | On demand, Optional | |
| Sensors |
Door Access Sensor Temperature and Humidity Sensor Smoke Sensor Water Immersion Sensor Tilt&Shock Sensor Optional |
|
| Other Equipment and Fixtures | ||
| Lighting System | LED light, with door access switch | |
| Grounding Bar | 2pcs Grounding Bars | |
| ODF Subrack | On demand, Optional | |
| MDF Line | On demand, Optional | |
5. Cabinet Picture
6. Cetificates
ISO 9001, ISO 14001, OHSMS18001, TLC, 3C, CE, FCC, etc
7. Patent
