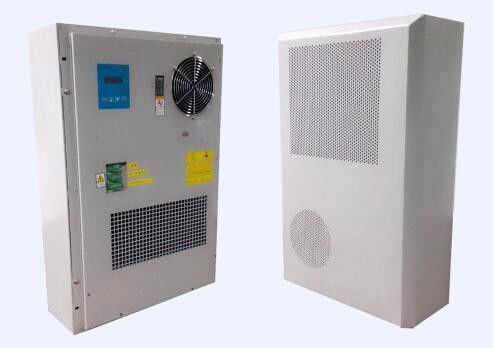

TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station

Certification
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Timely response, professional skills, rigorous attitude, fast delivery, we are very satisfied, cooperation is very smooth.

—— Manish

From 1 sample to 45 sets, 76 sets, 200sets, we gradually established a strong trust. The cabinet quality is good and the design is reasonable.

—— Parmar

In the past three years, our cooperation is very cheerful, thanks for your company's technical support and patient service, the end user is very satisfied with the quality of outdoor telecom cabinet with cooling. Best wishes to our future cooperation.

—— Anthony

The air conditioner have been running for one and a half years. Cooling effective is good. Good after-sale service, and patiently instruct to use and solve technical problems. Environmental monitoring system is also running well, and remote monitoring the cabinet is very convenient.

—— Luis Alberto

I'm Online Chat Now

TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station

China TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station supplier

Large Image :  TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: TC06-150JFH/B

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 80000 Sets Per Year
Detailed Product Description



AC220V 1500W Air Conditioner

Model: TC06-150JFH/B

Foreword
The manual mainly includes TC06-150JFH/B air conditioner’s application, technical parameters, operation instruction, product installation and maintenance, etc.

Note:
The manual only apply to TC06-150JFH/B air conditioner. Our company reserves the right of final explanation of the content of this manual.

Any operation on this product must be performed by professional engineering and technical personnel.
Introduction

1. Introduction And Application Scope
TC06-150JFH/B Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information. The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

2. Features
(1)Strong adaptability
(2)High intelligence
(3)High precision
(4)High reliability
(5)Low noise
(6)Low energy consumption
(7)With 4 way switching value detection
(8)With 1 way room air conditioner control
(9)Voltage input range: 220VAC±15%  50/60Hz
(10)With dry contact alarm output

3.System Principle Diagram

TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station
Diagram 1: System Principle Diagram

4.Standard Compliance



Standard

Description

GB/T 17626.7-1998

Electromagnetic compatibility

GB4706.1

Safety of household appliance and electrical appliance with similar use.

GB4798.1

Environmental conditions existing in the application
for electric and electronic products - storage

GB4798.2

Environmental conditions existing in the application
for electric and electronic products - transportation

GB4798.3

Environmental conditions existing in the application
for electric and electronic products - usage


5.Technical Parameters

Environmental Performance

working environmental temperature

-20°C ~ 55°C

storage temperature

-40°C ~ 70°C

working humidity

≤95%

Thermal Performance

rated cooling capacity

1600W(L35 L35)
1500W(L25 L35)

heating input power

optional


Electrical Performance

rated input current

2.35A(L35 L35)
2.2A(L25 L35)

rated input power

517W(L35 L35)
484W(L25 L35)

input voltage

AC220V
(185V~264V)

Noise

≤65dB

Reliability

MTBF

70000h

TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station


6. Electrical Wiring Diagram

TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station

Wiring Ports:

L  N  PE : power supply port (voltage input: 220VAC±25% 50/60Hz)
A+  B-  SGND : RS485 communication port
AL1  AL2: general alarm output port
F+  F- : straight ventilation output port
N : not connected pin



7. Wiring Diagram

TC06-150JFH/B,1500W AC220V Air Conditioner,For Outdoor Telecom Cabinet/Room/Base Station

Diagram 4: Wiring Diagram
