|Installation:||19" Rack||Power Supply:||48VDC Or 220VAC|
|Protocol:||SNMP Remote Network Monitoring||Relay Output:||6-way Relay Control Output|
19-inch Rack-mount Environment Monitoring System 220V AC Or 48V DC Power Supply
Environment Monitoring Unit is a network monitoring host designed for integrated network rooms that integrates UPS monitoring and extended power environments. Adopting the popular 19-inch rack-mount design style, supporting 220V AC or 48V DC power supply, supporting more than 12-way switching value, multi-way relay control output and ambient temperature and humidity expansion, with SMS monitoring and control functions, more secure and more reliable. It will be the best choice for modern unmanned duty rooms.
Working power supply: support AC 220V or DC 48V power supply, more widely used.
RS232 universal interface: synchronous acquisition of UPS real-time data.
6-way relay control output: flexible output control interface, which can realize control power output and passive switch mode, such as control fan, air conditioner and other corresponding power switch devices.
15-way switching value input detection: It can be used to monitor various room environment equipment such as smoke, flooding, access control, door magnetism, etc..
Human-computer interaction interface: LCD widescreen display makes it easier for users to confirm the parameter settings and operation of the system.
LED indication function: more intuitive understanding of the operating status of the GSM equipment site.
4 way of analog value: can be used with a variety of transmitters to achieve power, temperature, pressure and other aspects of the detection; input range: 0-5V.
Built-in GSM module: Support GSM dual-frequency, 900/1800MHz; realize remote SMS alarm function through SMS.
Support a wider range of UPS protocols: APC, MGE, Eaton, SANTAK, KSTAR, KELONG and many other domestic and foreign brands.
3.Installation Configuration Requirements
A UPS with RS-232 communication interface;
A computer (with administrative rights) with RS-232 communication interface and 10M/100M Ethernet adapter card for initial parameter setting;
complete network environment;
Series of function expansion options for network monitoring, monitoring, and management of UPS power and computer room environments and peripherals (optional).

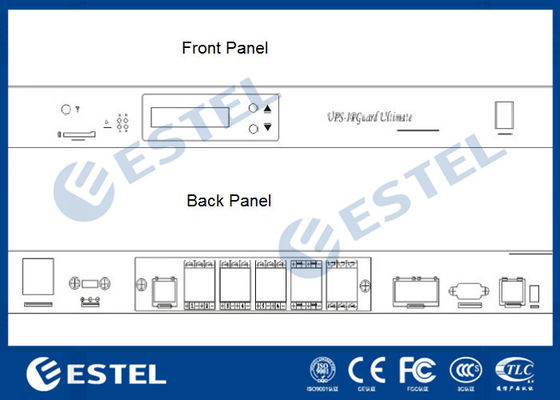

4.Panel Introduction And Wiring Port Definition
