|Monitoring Unit:||1U, DC48V||Layout:||2 Bays With Middle Division Plate.|
|Certificates:||CE||External Size:||H×W×D 1800×1600×800mm|
|Material:||Galvanized, Double Wall With Insulation||Color:||Grey/ Optional|
|Cooling System:||Air Conditions And Fans||Ip Rating:||IP55|

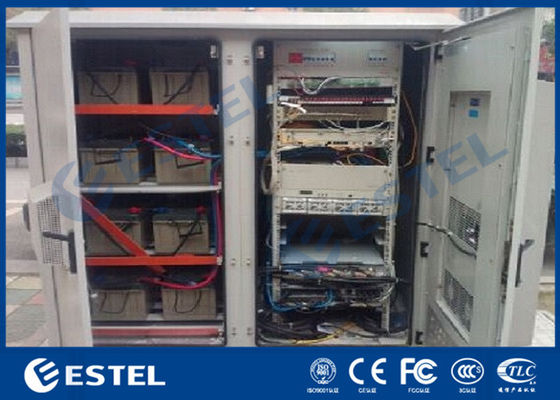

Two Compartments Air Conditioning Outdoor Telecom Cabinet For Equipments And Batteries
1. Cabinet Description
This series outdoor telecom cabinet offers standard 19” racking rails and battery shelves, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.
2. Cabinet Key Features
|Layout||Two compartments (left compartment and right compartment, with middle division plate).|
|Equipment Installation Method||Left compartment: battery shelves; right compartment: 19” rack|
|Door||With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock)|
|Material||Galvanized steel; double wall|
|Heat Insulation||20mm PEF.|
|Temperature Control||Cooling||air conditioners and fans|
|Lighting||LED lamp||48V LED lamps; The lamps will be on when the cabinet door is open, and will be off when the cabinet door is closed.|
|Temperature||Temperature||Working Temperature: -40°C ~ +55°C|
|Storage Temperature: -50°C ~ + 70°C|
|Transport Temperature: -50°C ~ +70°C|
|Humidity||Relative Humidity||5% ~ 100%|
|Pressure||Air Pressure||62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)|
|Radiation Intensity||Solar Radiation Intensity||1120 ×(1±5%)W/m2|
3. Cooling System
3.1 There are two air conditioners installed on the two front doors.
500W cooling capacity air conditioner is installed on the door of the left compartment for batteries
1500W cooling capacity air conditioner is installed on the door of the right compartmen for equipments..
3.2 There are 2 fans on top cover of the cabinet
4. Cabinet Components Installation
4.1 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.
4.2 Environment Monitoring Unit and PDU are installed on 19” rack.
4.3 Feeder cable and other external cables all use bottom wiring method.
5. Cabinet Production Pictures
6. Cabinet Quality
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification. Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
