|Cabinet Door:||Two Front Doors||Layout:||2 Compartments|
|Material:||Galvanized Steel||Color:||Grey / Optional|
|Cooling System:||Air Conditioners||IP Rating:||IP55|

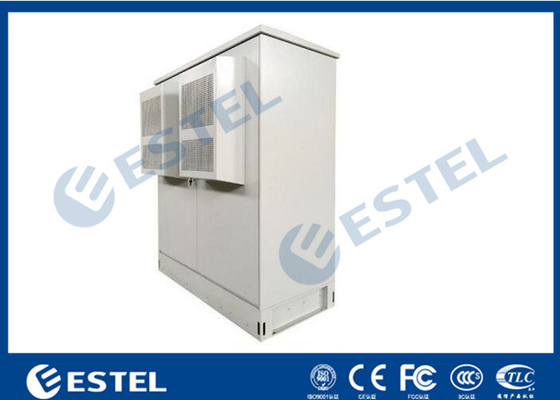

Communication Rack Outdoor Cabinet Two Compartments CE Certificated
1. Cabinet Features
1.1 Galvanized steel ,double wall with heat insulation.
1.2 Highly stable and rigid construction
1.3 Dustproof, sunproof and rainproof used in outdoor environment.
1.4 Floor mounting type
1.5 Including 19” standard installation rack.
1.6 The cabinet cooling uses air conditioner and fans.
1.7 Switching mode power supplies are available upon request.
1.8 Including -48VDC illumination lamp.
1.9 At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
1.10 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials, which comply with GB5169.7 test A
1.11 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
1.12 The cabinets system can support Electrical equipments, PDU, Mornitoring system and etc.
1.13 IP55 protection level.
1.14 CE Certificated
2. Cabinet Description
Two compartments outdoor cabinet is a perfect combination of quality and styling that shields your system effectively and presents it in an attractive package of which you can be proud. They can protect equipment against things like dust, heat, water, or other environmental hazards.
They offer standard 19” racking rails, is a new design for telecom projects and surveillance projects. These enclosures have provision of floor mounting. This series enclosures offer all the protection needed for outdoor requirements. Ultimate security is provided by a three-point locking system.
|1||Outdoor Telecom Cabinet||1||Set||
(1) External Size H×W×D 1800×900×1800mm

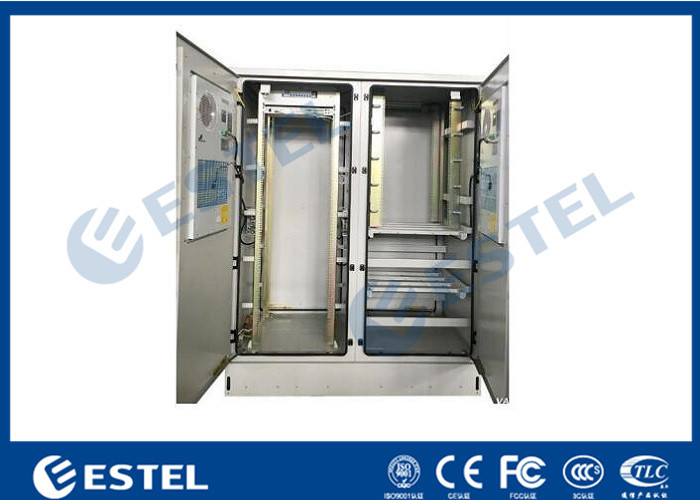

(2) Two compartments

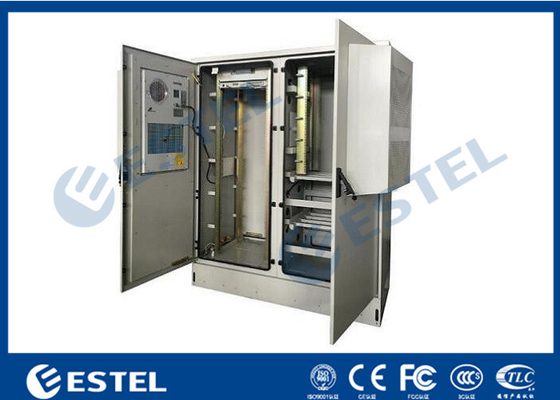

(3) With two front doors, and anti-theft three point lock for outdoor cabinet (support padlock)
(4) Material: Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate with 20mm PEF heat insulation between two walls.
Cooling capacity: 1.0KW,
Power supply: AC220V, 50HZ;
|3||Auxiliary Direct Ventilation Fans||2||PC||12038 DC48V|
|4||Door Sensor||2||PC||One for controlling LED lamp, the other for open door alarm|
|6||Embedded Telecom Power System (Rectifier)||1||Set||Optional|
|7||Temperature control switch||1||PC||Temperature control switch|
4. Cabinet Components Installation
4.1 LED lamp, smoke sensor and door sensor are installed at the top of the enclosure.

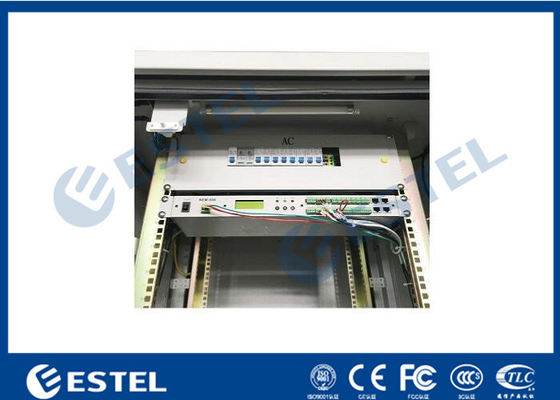

4.2 PDU & EMU
PDU and EMU are installed on the 19" rack.
5. Cabinet Applications
Wooden case with pallets
