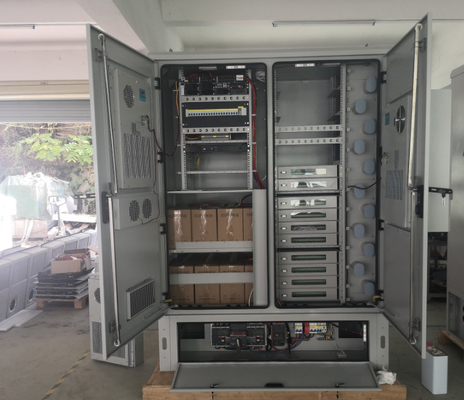

High IP Rating IP65 Stainless Steel Dual-Bay Integrated Outdoor Telecom Enclosure with Smart Thermal Control

High IP Rating IP65 Stainless Steel Dual-Bay Integrated Outdoor Telecom Enclosure with Smart Thermal Control


Technical Information:
Equipment Bay:
Standard Features without thermal management:

• IP65 rated
• 19 inch equipment mounting rails
• LH hinged door with black composite swing handle, 3-point locking systems & door stay
• Pitched roof
• Gland plate in each bay for cable entry
• Plinth for mounting
• IP65 vent plugs
• Lifting brackets
• Stainless steel 304 construction with powder coated finish, available in 2 standard colours; Light Grey or Dark Green

Standard Features with thermal management:

• IP55 Rated
• 19 inch equipment mounting rails
• LH hinged door with black composite swing handle, 3-point locking systems & door
• Pitched roof with internal hinges and stay
• Plinth for mounting
• Thermostatically controlled roof mounted fan
• Long life filter
• Lifting brackets
• Gland plate in each bay for cable entry
• Stainless steel 304 construction with powder coated finish, available in 2 standard colours; Light Grey or Dark Green

End Pod:
Standard Features:

• IP65 rated
• Back board for mounting electrical equipment
• Hinged door with black composite swing handle, three point locking systems & door stay
• Base mounted earth stud
• Gland plate for cable entry

Options:

• Stainless steel swing handle
• ETSI or DIN rail equipment mounting
• Equipment mounting backboard
• Other standard RAL colours available

Accessories:

• Anti-condensation heater kit
• Door alarm kit
• Cable trays
• Full range of 19” or ETSI mounting accessories
• Equipment shelves / Battery trays
• 19” PDU

* All cabinets can be equipped with heat management
Each bay has a thermostatically controlled fan, and each front door is equipped with a long-life filter.



Key Features:


• Modular Design: Available in 1, 2, or 3-bay widths, with adjustable depths and an optional end chamber for power distribution equipment.
• Robust Protection: Achieves IP65-rated ingress protection for harsh environments.
• Premium Material: Constructed from stainless steel 304 for durability and corrosion resistance.
• Flexible Mounting: Supports 19-inch, ETSI, and DIN rail configurations for versatile equipment installation.
• Smart Cooling: Features an intelligent thermal management system with fan/filter units and thermostat-controlled heaters.
• Anti-Vandal Security: Includes 3-point locking mechanisms and stainless steel hinges for tamper resistance.
• Compatible Accessories: Offers a range of 19-inch rack-mountable add-ons for customization.
• Ready-to-Deploy: Delivered fully assembled for immediate installation.

Product Overview:

Our telecommunication enclosure is able to keep communicating far from exploding under sun, heat radiation, rain, provide water, humidity, dust and chemical resistance. This series ensures equipments work appropriately and offers the largest capacity for our customers. This outdoor telecom enclosure is with air conditioner cooling, made of steel. Has the advantages of high integration, small floor area, flexible expansion, simple installation, energy saving, etc.
