|Monitoring Unit:||1U, DC48V||Layout:||2 Bays With Middle Division Plate.|
|Certificates:||CE||External Size:||W*D*H 1600*800*2100mm|
|Material:||Galvanized, Double Wall With Insulation||Color:||Grey/ Optional|
|Cooling System:||Air Conditions And Fans||Ip Rating:||IP55|
Two Bay Galvanized Steel Outdoor Telecom Cabinets Floor Mounting PEF Heat Insulation
1. Two Bay Cabinet Key Features
IP rated protection
Vented, glazed or steel doors with single or multi-point locking systems
Range of cable management options and power supply accessories
Designed for maximum thermal and space efficiency
Hot and cold aisle containment
Innovative range of telecommunications cabinets
19 inch rack and battery layers
Security locking systems
Single or double skin construction
2. Two Bay Cabinet Features
2.1 Dimensions: W*D*H 1600*800*2100mm,
2.2 Standard 19” Rack Mountable Equipment.
2.3 Dustproof, Sunproof and Rainproof.
2.4 Layout : 2 compartments (separated left compartment and right compartment), with middle division plate.
2.5 Electrical Grounding bar inside.
2.6 Doors: Lockable, With 2 front doors, and anti-theft 3-point lock with padlock optional.
2.7 Installation mode: installed on a concrete floor.
2.8 Heat Insulation: 20mm PEF heat insulation between inner wall and outer wall.
2.9 Cabling mode: routed in and out from the bottom.
2.10 Including -48VDC illumination lamp.
2.11 Accessories: PDU, Monitor, Light, Alarm Sensors (Based on request),Batteries.
2.12 Temperature Control: AC220V air conditioner or DC48V fans.
2.13 Protection level:IP55.
3. Two Bay Cabinet Benefits
3.1 State of the art technology
This series inverter incorporate technology to reduce harmonic distortion and increase both crest factor tolerance and dynamic stability.
3.2 Effective thermal management
It is designed with a unique spot cooling thermal management design that qualifies the system to satisfactorily operate at ambient temperature more than 45C.
3.3 High reliability
PULSEGATE Series inverters are designed for high reliability as components are selected with high de-rating factors to assure maximum MTBF.
3.4Long design life
Components are carefully selected to provide system that operate at extreme ambient conditions with life expectancy in excess of 20 years.
Enclosures are industrial grade that are made of firmly welded heavy-gauge steel with an attractive, long-lasting powder textured coating (RAL 7032). Standard cabinets are IP55. Other protection classes and colors are available upon request.
3.6 Ease of access
All components are front accessible; no side or back clearance is required. Internal components and connections are easily accessible and/or removable through the front door.

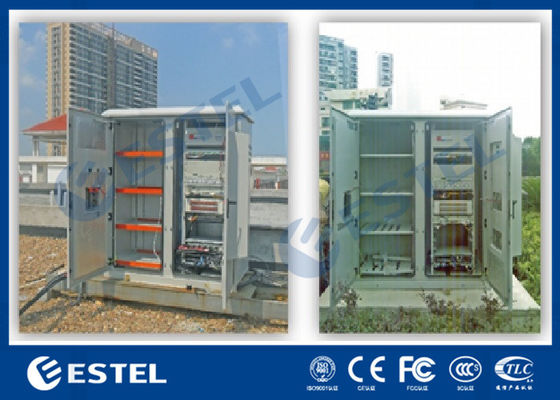

4. Cabinet Picutres
5. Cabinet Application
