Product Details:
Payment & Shipping Terms:
|
Model: | EVCSE48400 | Current: | 50-400A |
---|---|---|---|
Frequency: | 50/60Hz±10% | Working Temperature: | -25~ + 55 (typical Value 25℃) |
Voltage: | 48V( 40~58Vdc Adjustable) | Dimension: | 482×280×440mm |
Power Factor: | ≥0.99 | Load Outputpower: | (10-63)A*10 |
Battery Input: | 100A*2 | Weight: | 15kg |
Place of Origin: Shenzhen, China (Mainland) | Single phase 220Vac |
Brand Name: ESTEL | 48V( 40~58Vdc adjustable) |
Model Number: EVCSE48200 | Output Power: 23.2KW |
Product Name:AC/DC Power System | Input Frequency:50/60Hz±10% |
Certification: ISO9001, CE, 3C, FCC, TLC | Output Current:50-400A |
Application: transmission device,Satellite communication ground station | Power Factor: ≥0.99 |
Weight: 15kgs | Current sharing at paralleling: ≤±3% |
Battery Input: 100A*2 | Voltage stability precision: ≤±0.6% |
Load Output: (10-63)A*10 | Efficiency: ≥91% |
2. Rectifier System Description

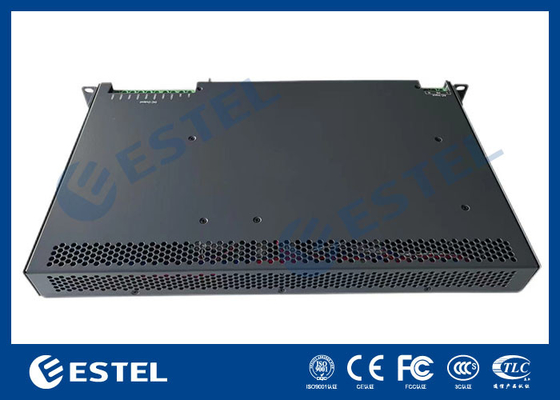

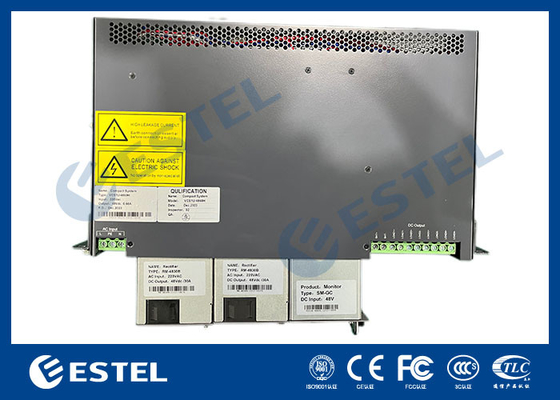

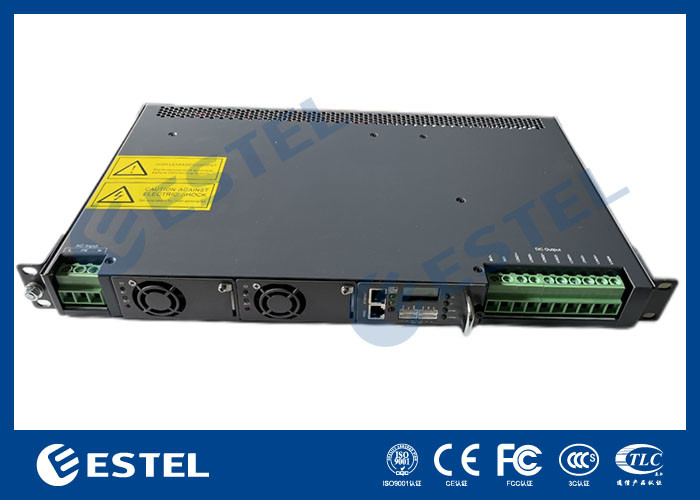

The EVCSE48400 consists of VSM-B control module, VRM48 rectifier module, and etc. And there is AC-DC distribution unit. It’s capacity can reach 48V/50A~400A combining racks with rectifiers.
3. Rectifier Control ModuleTechnical Parameters
Input | |
Rated volage | Single phase 220Vac |
Operation voltage range | 90~300Vac |
Current | ≤18.5A |
Frequency | 50/60Hz±10% |
Power factor | ≥0.99 |
Output | |
Voltage | 48V( 40~58Vdc adjustable) |
Current | 50A@58 |
Current sharing at paralleling | ≤±3% |
Voltage stability precision | ≤±0.6% |
Protection | Over voltage, over current, output short-circuit and over temperature |
Other data | |
Efficiency | ≥92% |
Cooling mode | Fan cooling |
Operating temperature | -10~+55℃ |
Degree of protection class | IP20 |
Ripple voltage | ≤200mVpp |
Phosphometric noise | ≤2mVrms |
Load effect | ≤±0.5% |
Restoring time of load effect | ≤200μs |
Source effect | ≤±0.1% |
Dimension (mm) | 106(W) ×218(D) ×83.8(H) |
Weight | 2.2kg |
EMC | |
Emission | Ac input in accordance with EN50081-1 and EN50081-2; DC output in accordance with EN50081-2 |
Immunity | In accordance with EN50081-1, EN50081-2 |
Safety |
In accordance with IEC950, EN60950, EN41003, UL1950, AS/NZ3260 |
3. Model EVCSE48400 Operating Principle
Under normal conditions, every parameter of rectifier modules and distribution unit are all under control of the monitoring module, operating according to the pre-set parameter or user’s commands. If AC mains fault, the system will be powered by the battery. With the battery discharge, the terminal voltage of the battery starts to descend. When the battery voltage is under 42V±0.5V, the monitoring module reports battery under voltage alarm signal and cuts off the load output, then the power system stops working. When the external AC mains recovers, the system will resume to the normal work state. (All above monitoring data are system default values that users can reset).
4. Rectifier Application
(1) Integration access
(2) Indoor distribution and extension system
(3) Mobile station and extension coverage system
(4) WLAN
(5) Satellite communication ground station and microwave communication station
(6) Weak current distribution room
(7) Other AC/DC uninterruptible power system
