1500W Mixed Liquid Air to Air Heat Exchanger for Telecom Cabinet / Enclosure Heat Exchanger / Heat Pipe Heat Exchanger

Large Image : 1500W Mixed Liquid Air to Air Heat Exchanger for Telecom Cabinet / Enclosure Heat Exchanger / Heat Pipe Heat Exchanger

Product Details:

Place of Origin:	Shenzhen, China (Mainland)
Brand Name:	ESTEL
Certification:	ISO9001, CE, 3C, FCC, TLC
Model Number:	HE06-150SEH/01

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	carton + foam + wooden case
Delivery Time:	10-15 working days
Supply Ability:	12,000 sets per month

Contact Now

Detailed Product Description

Cooling Method:	Heat Pipe, Passive Cooling	Installation Mode:	Door Mounted
Cover:	Galvanized Steel, Including Outer Cover	Protection Level:	IP55
Color:	Gray,	Rated Heat Exchange Capacity:	150W/K
Rated Heating Capacity:	300/500W (optional)	Rated Input Voltage:	DC48V
Rated Input Current:	2.5A	Rated Input Power:	120W
Working Temperature:	-20°C ~ +55°C	Energy Efficiency Ratio (EER):	12.5

1500W Mixed Liquid Air to Air Heat Exchanger for Telecom Cabinet / Enclosure Heat Exchanger / Heat Pipe Heat Exchanger

1500W Mixed Liquid Air to Air Heat Exchanger for Telecom Cabinet / Enclosure Heat Exchanger / Heat Pipe Heat Exchanger

1.Specifications

(1)Technical Parameters

Model No.		HE06-150SEH/01
Environmental Performance	working environmental temperature	-20°C ~ 55°C
	storage working temperature	-40°C ~ 70°C
	working humidity	≤95%
Thermal Performance	rated heat exchange capacity	150W/K
Thermal Performance	rated heating capacity	300/500W (optional)
Electrical Performance	rated input current	2.5A
	rated input power	120W
	rated input voltage	DC48V
Reliability	MTBF	70000 hours
Noise	64dB
Energy Efficiency Ratio (EER)	12.5
Protection Level	IP55

(2)Dimension Diagram: 430×176×700 mm (W×D×H)

1500W Mixed Liquid Air to Air Heat Exchanger for Telecom Cabinet / Enclosure Heat Exchanger / Heat Pipe Heat Exchanger

Size

Specs

Model

150W/K

HE06-150SEH/01 (CW043)

300

401

450

600

672

700

133

176

649

379

430

2.Description

Cabinet heat exchanger is a device that utilizes the natural cool resources to exchange heat between hot inside and cool outside of cabinet with limited power consumption.

When there is large temperature difference, the device will effectively exchange heat between hot inside and cool outside, which make the cabinet be an enclosed system with temperature control, and equipment inside can work normally.

3.Application

The cabinet heat exchanger is widely used for outdoor telecom cabinet, outdoor battery cabinet, outdoor UPS cabinet, outdoor power cabinet, electric cabinet and industry cabinet,etc.

4. Features

(1)Strong adaptability
(2)High intelligence
(3)High precision
(4)High reliability
(5)The heat exchange capacity can be set according to need
(6)Low noise
(7)Low energy consumption
(8)With 4 way switching value detection
(9)With 1 way room air conditioner control
(10)Wide input voltage range: DC36 - 65V
(11)With dry contact alarm output
(12)Dust proof and water proof

5.System Principle Diagram

1500W Mixed Liquid Air to Air Heat Exchanger for Telecom Cabinet / Enclosure Heat Exchanger / Heat Pipe Heat Exchanger

6.Electrical Wiring Diagram

1500W Mixed Liquid Air to Air Heat Exchanger for Telecom Cabinet / Enclosure Heat Exchanger / Heat Pipe Heat Exchanger

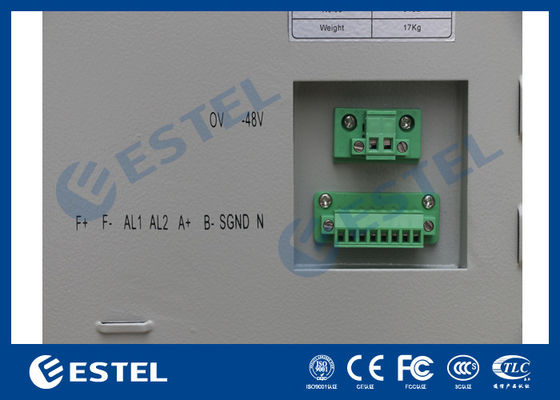

Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC48V)

7.System Control Wiring Diagram

8. Packing
