DC48V 100W Thermoelectric Cooler / Peltier Air Conditioner For Outdoor Telecom Cabinet, IP55
Quick Details:
Place of Origin: Shenzhen, China (Mainland) | Cooling Capacity : 100W |
Brand Name: ESTEL | Heating Capacity: 300W |
Model Number: TC06-10TEH/01 | Dimension H×W×D: 281×185×180mm |
Product Name: Thermoelectric (Peltier) Air Conditioner | Input Voltage: DC48V |
Certification: ISO9001, CE, 3C, FCC, TLC | Cooling Start Current: 5.5A |
Cover Material: galvanized steel | Cooling Stable Current: 4.5A±10% |
Color: grey | Working Temperature: -20°C ~ +55°C |
IP Grade: IP55 | Noise: 55dB |
Installation Mode: door mounted | Cooling Method: peltier |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
Price: | Depend on order quantity |
Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
Supply Ability: | 4,500 sets per month |
Delivery Time: | 10-15 working days |
Packaging Details: | carton + foam + wooden case+pallet |
1.Specifications
(1)Technical Parameters
Model No. | TC06-10TEH/01 |
Cooling Method | air to air |
Cooling Object | air |
Cooling Object Contact Medium | air |
Rated Cooling Capacity | 100W |
Rated Heating Capacity | 300W |
Rated Input Voltage | DC48V (43V~58V) |
Cooling Stable Current | 4.5A±10% |
Cooling Start Current | 5.5A |
Operating Environmental Temperature | -20°C-55°C |
Overheat Protection | Can be set |
Installation Mode | side |
Noise | 55dB |
Service Life | over 7 years |
Size (HxWxD) | 281x185x180mm |
Weight | 6Kg |
(2)Dimension Diagram: H×W×D: 281×185×180mm
2.Description
The TC06-10TEH/01 TEC air conditioner is a full automation temperature control device. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect and operate.
The TC06-10TEH/01 TEC air conditioner consists of 6 parts: peltier module (including sealing and insulation material), cold end radiator, hot end radiator, cold end fan, hot end fan, monitoring module. When power supply is connected to the TEC, one side of the peltier conduct cooling, and the other side of the peltier conduct heating, the cool (heat) from which will diffuse to the surrounding environment through cold (hot) end radiators and fans. The cold end radiator and cod end fan constitute the inside circulation for cooling the cabinet internal environment, while the hot end radiator and hot end fan constitute outside circulation for heat radiation to the external environment.
TC06-10TEH/01 inside circulation and outside circulation air ventilation
Both the inside circulation and outside circulation air ducts adopt air inlet through middle fans and air outlet through radiators at the two sides.
3.Application
The Thermoelectric Cooler (Peltier Air Conditioner) is widely applied in outdoor telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.
4. Control
4.1 Brief
TC06-10TEH/01 air conditioner uses a universal intelligent controller ET724, which is controlled by highly integrated STC single chip microcomputer. The controller, with good performance, easy and convenient installation and set.
4.2 Technical Parameter
(1)Three digit seven segment digital tube displays measured temperature and set temperature.
(2)Temperature measurement accuracy: 0.1 °C; display accuracy: 0.1 °C.
(3)Intelligently choose cooling mode or heating mode.
(4)With protective direct ventilation function.
(5)Power Supply: DC48V.
(6)Power Consumption: ≤5W.
(7)Working Environment: -30°C~70°C; <90%RH.
(8)Installation method: guide rail, hanging.
(9)Size (L×W×H): 150mm×190mm×45mm
4.3 Operating Instruction

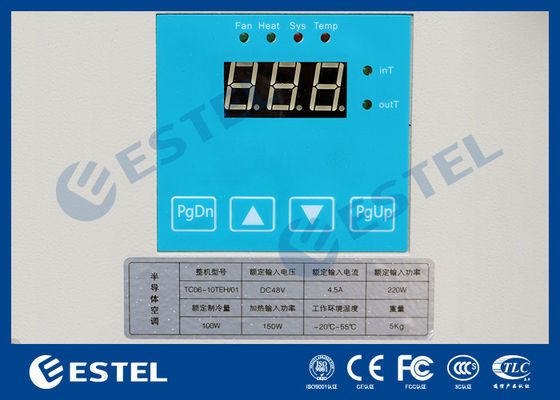

ET724 uses user-friendly interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:
control board diagram
5. Mainboard Wiring Diagram
6.Factory Introduction
Factory Size: 3000 Square Meters
No. of Main Production Lines: 5
Contract Manufacturing: OEM Service Offered, Design Service Offered, Buyer Label Offered
Production Experience: 13 Years
(1)Main Production Line
(2) Quality Control Introduction
Our company resolutely implements the principle of quality first, we control and supervise the whole production process in strict accordance with the requirements of the ISO9001 system and the related implementation process. The quality department strictly controls all aspects like material inspection, production processes, product testing, shipment inspection and establishes traceable documents and product identification.
Our quality inspection team, is very familiar with the various standards, strict implementation of the standards required sampling and testing methods.
7.Packing
