Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

China Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made supplier
Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made supplier Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made supplier Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made supplier Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made supplier Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made supplier

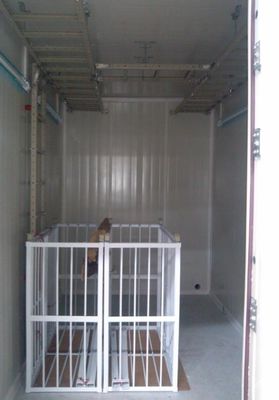

Large Image :  Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Product Details:

Place of Origin: China
Brand Name: ESTEL
Model Number: ETS-A5327

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden case
Delivery Time: 20 days
Payment Terms: T/T, L/C
Supply Ability: 1000 sets per month
Detailed Product Description

Steel Armored Telecom Shelter



Type: Steel Armored Telecom Shelter
Standard Size: 5m*3m*2.7m (L*W*H)
Model: ETS-A5327

Components List



No.

Item

Unit

Position

Specs


Remark

Shelter Body

1

Base Frame

Ton

Base of the Base Station

12# Galvanized Channel Steel

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Base Outer Frame Main Steel Beam

2

Base Secondary Beam

Ton

Base of the Base Station

8# Galvanized Channel Steel

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Base Outer Frame Secondary Steel Beam

3

Base Secondary Beam

Ton

Base of the Base Station

5# Galvanized Angle Steel

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Base Outer Frame Secondary Steel Beam

4

Base Plate

Ton

Base Plate of the Base Station Base Frame

3mm Galvanized Steel

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Base Plate for Base Frame

5

Base Plate

m2

Floor of the Base Station Base Frame

PVC Antistatic Floor

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

450*450*2

6

50mm Thick Wall Plate

m2

Wall Plate

970mm Wide EPS Plate

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Grade B2 EPS Plate, Grey

7

Outside of the Shelter

m2

Outside Steel Armor

Steel Armor

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

1.2mm Galvanized Steel

8

75U-1.0 Wall Keel

m

U Shape Keel Slot for Wall Plate

75U-1.0 Galvanized Keel

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

1.0mm Thick Galvanized Keel

9

50mm Thick Roof Plate

m2

Roof Plate

970mm Wide EPS plate

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Grade B2 EPS Plate, Grey Color Steel, Thickness: 0.5mm

10

Roof Corrugated Plate

m2

Roof Tile

Roof Water Falling Tile

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

86 Type Corrugator

11

Corner Connector

m

Four Wall Corner Fixing Parts

Wall Corner Fixing

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

1.0mm Thick Galvanized Steel Bend

12

Corner, Eave Gutter Color Steel Edge

m

Corner, Eave Gutter Grey Color Steel Edge

Eave Gutter and Wall Corner

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

0.5mm Thick Grey Color Steel Bend

13

Inside Corner Line

m

Inside Corner Line of the Base Station

White PVC Line

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made



14

4.2*16 Self-tapping Screw

Box



Connecting Wall Plate Slot and Base

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made



15

6.3*135 Nylon Head Screw

Box



Connecting Roof Plate and Wall Corner

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Fixing Through Wall

16

4.2*25 Self-tapping Screw

Box



Connecting Outer Wall Keel and Wall Plate

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made



17

¢5*13 Rivet

Box



Outer Wall Edging

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made



18

White Adhesive

PC



Waterproof Seal, Structure Adhesive

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Weather Resistant Adhesive

19

Anti-theft Door

Set

Outer Door

960*2050

Steel Armored Telecom Shelter, Outdoor Telecom Shelter, Sandwich Structure, Custom Made

Inlcuding Lock

Indoor and Outdoor Configuration

20

Power Switch, Socket

PC

Fluorescent lamp *1; Emergency Light*1; Switch*1;Two or Three Hole Socket*1;Air Conditioner Three Hole Socket*1



Telecom Shelter Accessories List (Optional)

No.

Item

Specs

1

Cabling Rack

Common 400mm wide

2

Cabling Rack

Common 600mm wide

3

Net Type Copper Jumper

16mm2

4

600 Equipment Rack

U Type

5

700 Equipment Rack

U Type

6

Grounding Copper Bar

-6*100*300mm

7

Grounding Copper Bar

-6*100*400mm

8

Grounding Copper Bar

-6*80*350mm

9

Grounding Copper Bar

-10*100*300mm

10

Grounding Copper Bar

-10*100*400mm

11

Grounding Copper Bar

-10*120*500mm

12

Feeder Window

Four holes,hoop type

13

Feeder Window

Six holes,hoop type

14

Feeder Window

Nine holes,hoop type

15

Emergency Light

Double heads

16

Fire Extinguisher

2KG

17

Insulator



18

Suspender



19

Copper- Steel Converter

-4*40*310 mm

20

Copper Bar

40*4mm

21

Air Conditioner Shield

500*1200*1000 mm

22

Air Conditioner Shield

500*1500*1000 mm

23

Spay-Paint
