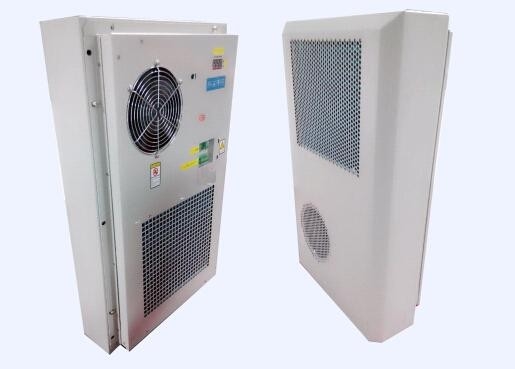

IP55 Heat Pipe Heat Exchanger, for Outdoor Telecom Cabinet, 300W, 650W, 800W, 1200W, 1500W

: Large Image : IP55 Heat Pipe Heat Exchanger, for Outdoor Telecom Cabinet, 300W, 650W, 800W, 1200W, 1500W

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTEL
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	wooden case
Delivery Time:	20 days
Payment Terms:	T/T, L/C
Supply Ability:	1000 sets per month

Contact Now

Detailed Product Description

Heat Pipe Heat Exchanger

1. Description

Heat Pipe Heat Exchanger uses refrigerant phase-change heat transfer principle to conduct passive cooling to cabinet equipment compartment. It makes full use of temperature difference between cabinet internal environment and external environment, effectively introduce the external cold air, fast move heat inside the station to the outer environment, to realize cabinet cooling. The energy efficiency ratio of the heat exchanger is above 8~9, with high efficiency and energy saving.

2. Features

(1) Independent energy saving control technology greatly reduces working energy consumption;

(2) LCD control board provides easy installation and maintenance;

(3) Perfect monitoring function, effective monitoring and management on air conditioner operation;

(4) Integrated design, easy for installation and maintenance;

(5) Protection Level: IP55, anti- corrosion, long service life;

(6) Using DC high efficient fans, greatly lower the product noise, environment friendly;

(7) Good energy saving performance, short investment payback period;

(8) Long service life: more than 10 years, easy maintenance and low cost;

(9) With RS485 remote monitoring interface, fault detection and alarm can be transmitted to monitoring center through controller.

3. Heat Pipe Heat Exchanger (Side Mounted)

Technical Parameters

Model	HE06-30SEH/01	HE06-65SEH/01	HE06-80SEH/01	HE06-120SEH/01	HE06-150SEH/01		HE06-400SEH/01
Performance Parameters
Rated Voltage (V)	DC48V	DC48V	DC48V	DC48V	DC48V		AC220V/50HZ
Rated Current (A)	0.96	2.05	2.53	2.94	3.68		1.9
Heat Exchange Capacity (W)	300	650	800	1200	1500		4000
Heater Power (W)	300	300	300	300	300		300
Rated Power (W)	46	99	121	142	176		418
Circulation Air Volume (m3/h)	200	450	550	820	1020		2700
Noise (dB(A))	50	55	57	59	62		65
Refrigerant	Mixed Refrigerant
Working Temperature	-20°C ~ 55°C
Mechanical Parameters
Installation Mode	Side	Side	Side	Side		Side		Floor
Height (mm)	600	800	800	900		1000		1400
Width (mm)	380	380	380	380		520		650
Depth (mm)	170	170	170	170		265		400
Controller Parameters
Working Voltage (V)	DC36~72	DC36~72	DC36~72	DC36~72		DC36~72		DC36~72
Working Temperature and Humidity	-20°C ~ +80°C, <90%RH
Temperature Control Accuracy (°C)	0.1	0.1	0.1	0.1		0.1		0.1
Power Consumption (W)	5	5	5	5		5		5
Communication Mode	Dry contact,RS485, RS232, GPRS

4. Heat Pipe Heat Exchanger (Top Mounted)

Technical Parameters

Model	HE06-30SEH/01	HE06-65SEH/01	HE06-80SEH/01	HE06-120SEH/01
Performance Parameters
Rated Voltage (V)	DC48V	DC48V	DC48V	DC48V
Rated Current (A)	0.95	2.05	2.53	2.95
Heat Exchange Capacity (W)	300	650	800	1200
Heater Power (W)	300	300	300	300
Rated Power (W)	46	99	121	142
Circulation Air Volume (m3/h)	200	450	550	820
Noise (dB(A))	50	55	57	59
Refrigerant	Mixed Refrigerant
Working Temperature	-20°C ~ 55°C
Mechanical Parameters
Installation Mode	Top Installed	Top Installed	Top Installed	Top Installed
Height (mm)	180	180	310	310
Width (mm)	482.6	482.6	482.6	482.6
Depth (mm)	500	500	500	500
Controller Parameters
Working Voltage (V)	DC36~72	DC36~72	DC36~72	DC36~72
Working Temperature and Humidity	-20°C ~ +80°C, <90%RH
Temperature Control Accuracy (°C)	0.1	0.1	0.1	0.1
Power Consumption (W)	5	5	5	5
Communication Mode	Dry contact, RS485, RS232, GPRS
