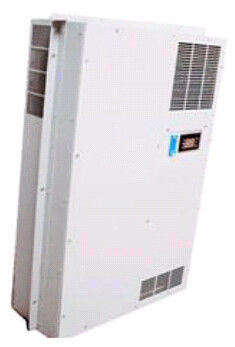

SAD120-1, 2000W DC48V Door Mounted Cabinet Air Conditioner, For Outdoor Telecom Cabinet

China SAD120-1, 2000W DC48V Door Mounted Cabinet Air Conditioner, For Outdoor Telecom Cabinet supplier

Large Image :  SAD120-1, 2000W DC48V Door Mounted Cabinet Air Conditioner, For Outdoor Telecom Cabinet

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: SAD120-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 8000 Sets Per Year
Contact Now
Detailed Product Description

2000W  DC48V Door Mounted Cabinet Air Conditioner

1.Working Principle


Cabinet air conditioner cools with compressor actively, removing heat inside the sealed cabinet to the outside.

Temperature inside the cabinet can be maintained at about 30℃, which is an ideal environment for electrical components to guarantee the stability of the electronic equipment effectively.

2.Application

Cabinet air conditioner can be widely used for electric equipment control box, battery compartment, and telecommunication equipment and other pertinent equipments, such as wireless communication cabinet, battery cabinet, electric cabinet, industry control cabinet etc.

3.Features

(1) Work perfectly from -40 to +55 Degrees Celsius. Cooling temperature range is from +20℃~+55℃.
(2) Protective level of internal and external circulation is IP55, which can protect cabinet to avoid moisture, dust, water.
(3) Totally solve dust and moisture contamination issues caused by ventilation.
(4) Main components are CE certified, which can meet EU RoHS requirements.
(5) Use natural cooling technologies, more reliable and lower cost than air conditioning.
(6) Digital temperature controller and highly precise temperature control.
(7) Automatic self start after power recovery.
(8) Can be installed inside and outside. Indoor cabinet air conditioner has unique condensate treatment system, no condensate discharge.
(9) Environmental friendly refrigerant: R134a.
(10) Reasonable structure design makes the installation and maintenance more convenient.

4.Technical Parameters


Model

SAD120-1

Rated Voltage (V)

48V 50/60Hz

Rated Power (W)

L35/L35

830

L35/L50

960

Cooling Capacity (W)

L35/L35

2000

L35/L50

1650

Heating Power (W)

800

Refrigerant

R134a

Working Temperature Range (°C)

Cooling Working Temperature: +20 ~ +55

Heating Working Temperature: -40 ~ +15

Weight (Kg)

45

Noise (dB)

68

Color

RAL7035

IP Grade

IP23/IP55

Ambient Air Circuit (m3/h)

1100

Cabinet Air Circuit (m3/h)

725

Dimension W*H*D (mm)

553×1300×204


5.Drawing









SAD120-1, 2000W DC48V Door Mounted Cabinet Air Conditioner, For Outdoor Telecom Cabinet
