IP55 Outdoor Battery Cabinet Galvanized Dual Wall Rack with air conditioner 1500W
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | ET8070150B-150 | External Size: | W*D*H 800*700*1500mm |
|---|---|---|---|
| Material: | Galvanized Steel /Optional | Color: | Grey/ Optional |
| Temperature Control: | Air Conditioner | IP Rating: | IP55 |
| Maintenance: | With One Front Door | Structure: | Assembled |
| Coating: | Polyester Powder Coating | Hinge: | Inner Hinge |
IP55 Outdoor Battery Cabinet Galvanized Dual Wall Rack With Air Conditioner 1500W
1.IP55 Outdoor Battery Cabinet Application
This outdoor battery cabinet can be configured to meet specific requirements with a range of options also available including cable management, thermal management, environmental protection and integration. provides superior protection for telecom and communication equipment from the ravages of changing weather, temperature, moisture and other hazards.
2. Dual Wall Rack Features
(1) The battery cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
(2) Cooling: air conditioner
(3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
(4) All the cables used in the cabinet are made from flame retardant materials.
3. Outdoor Rack With Air Conditioner 1500W Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size W*D*H 800*700*1500 mm |
| Layout | One compartment, used for installing 19” equipment | |
| Equipment Installation Method | 19” rack with 2 battery tray | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, double wall with thermal insulation | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner |
| Lighting | LED lamp | 220VAC |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |

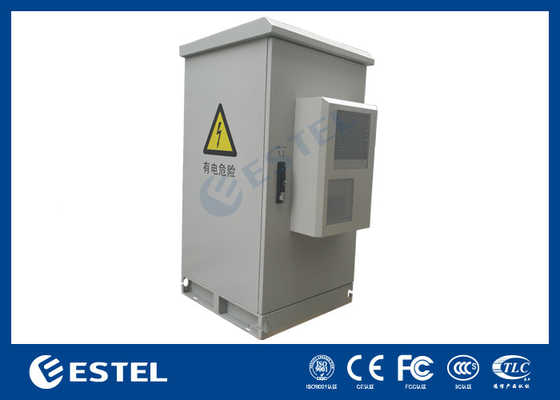

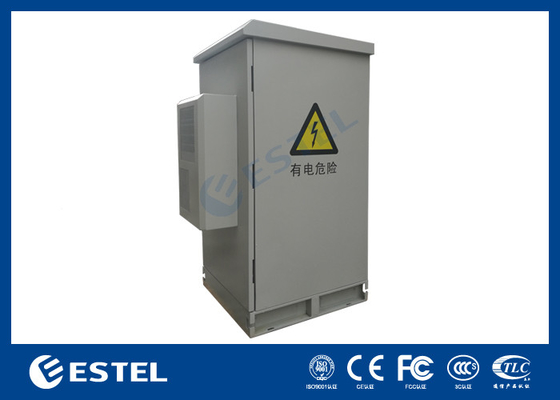

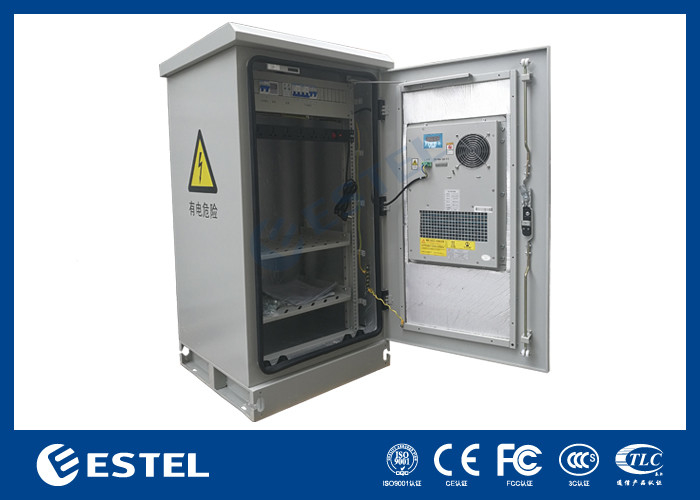

4. IP55 Outdoor Galvanized Steel Picture
5. Appearance And Surface Treatment
Cabinet surface coating is outdoor special powder coating, with RAL 7035 color. The coating complies with GB/T 3181-2008 requirement.
The color is customized based on customer's request.
6. Outdoor Dual Wall Rack Description
The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
Cabinet cooling: air conditioner. MTBF≥50000h.
The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets individually for power cable, signal cable and optical cable.
All the cables used in the cabinet are made from flame retardant materials.
The cabinet includes grounding bar
LED lamp, LED lamp sensor, smoke sensor, door sensor and temperature & humidity sensor are installed at the top of the cabinet.
Water sensor is installed at the bottom of the cabinet.
PDU, environment monitoring unit and rectifier system are installed on 19” rack.
The cabinet includes totally one air conditioners, installed on front door.
The cabinet includes rubber base plate, for installation on transport telecom tower trailer
