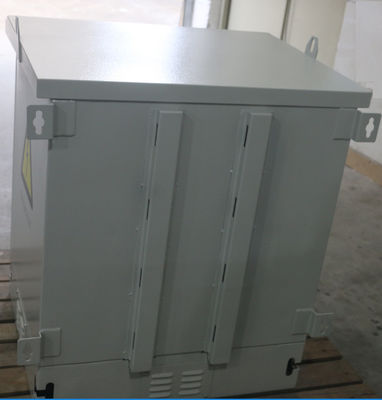

Single Wall Outdoor Pole Mounted Cabinet / Wall Mounted Enclosure/ Floor Mounted Cabinet

Quick Details:

Payment & Shipping Terms:

1. Application

The ET706085PWF-S wall / pole / floor mounted outdoor telecom cabinet is widely used in wireless communication base station, such as 3G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

2. Specifications

(1)Technical Parameters

(2)Accessories List

3. Drawing

4. Structure

The cabinet is made of hot dip galvanized steel, single wall structure. It is easy for installation and with perfect sealing performance.

Equipment Compartment: The ET706085PWF-S cabinet is used for installing telecom equipments and battery. The cabinet is a single-wall cabinet, with heat insulation between the two walls. It uses 4 fans for cooling. It is sunproof and waterproof.

Door and Door Lock: The cabinet door uses embedded structure. The door opening angle is larger than 110° and the door limit device can limit the opening angle. The lock is theftproof three point lock, supports padlock.

Cabinet External Size : 700x600x850mm (W×D×H)
Cabinet Internal Size : 610x510x640mm (W×D×H)

5. Features

5.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
5.2 The cabinet use fans for cooling.
5.3 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There’re entrance holes individually for power cable, signal cable and optical cable.
5.4 All the cables used in the cabinet are made from flame retardant materials.

6. Technical Specs
6.1 Applicable environment conditions:
Environment temperature: -40°C ~ + 60°C
Environment humidity (RH): ≤95% (at + 40°C)
Air pressure: 70kPa ~ 106kPa
6.2 Material: hot dip galvanized steel
6.3 Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.
6.4 Cabinet load bearing: ≥600kg
6.5 Ingress protection: IP55
6.6 Flame retardance: comply with GB5169.7 test A
6.7 Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is not lower than 2X104M/500V(DC).
6.8 Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not lower than 3000V (DC) /1min.
6.9 Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer end can bear upright pressure ＞200N.

7. Cable Entrance
All outside cables use bottom entrance method.

8. Grounding Protection

(1) The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.
(2) The metal part of the cabinet should be interconnected and be connected with grounding bar. Connection resistance between any two points is lower than 0.1Ω.

9. Theft Proof Design
9.1 Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

(2) Three point lock

9.2 Connection and Fastening
(1)Use anti-loose threaded connection as structure and bearer connection. Anchor bolt for fixing cabinet use hot dip galvanized bolts.
(2)Door hinges use inner hinge mode.

9.3 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with white gray color (PANTONE 428C). The coating complies with GB/T 3181-2008 requirement.

9.4 LED lamp, LED lamp sensor and door sensor are installed at the top of the cabinet.

9.5 Water sensor is installed at the bottom of the cabinet.

9.6 Two fans are installed on the top of the cabinet

10. Ventilation

Air Outlet:

Air Inlet:

11.Installation Method-Three Mounted Methods For Option

(1) Wall Mounting

(2)Pole Mounting
(2.1) Steel Banding System

(2.2) Mounting Bracket

(3) Floor Mounted
15. Packing and Shipping

The cabinet packing is wooden case in compliance with GB3873-83, damp proof and shock proof. The outside of the packing is painted with damp proof sign, shock proof sign, direction sign, etc.
