Rainproof Outdoor 32u Rack Cabinet One Front Door Anti Theft

1. Application

This series cabinet is 1750mm High and 750mm Wide and 750mm Deep. For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.

2. Cabinet Application

- The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.

- The cabinet cooling uses air conditioner and fans.

- Including one 48VDC illumination LED lamp, installed on cabinet top.

- Including smoke detector and door switch,Water Sensor,Temperature and Humidity Sensor.

- The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. There are cable inlets at the bottom of the cabinet.

3. Technical Parameters

4. Accessories List

5. Enclosure Cooling

Air Conditioner Cooling capacity: 1.5KW and 48VDC Fans

6. Cabinet Structure

(1) External Dimension: 750×750×1750mm

(2) one compartment

(3) With one front door , and special lock for outdoor cabinet (support padlock) ;

(4) Material: High quality galvanized steel

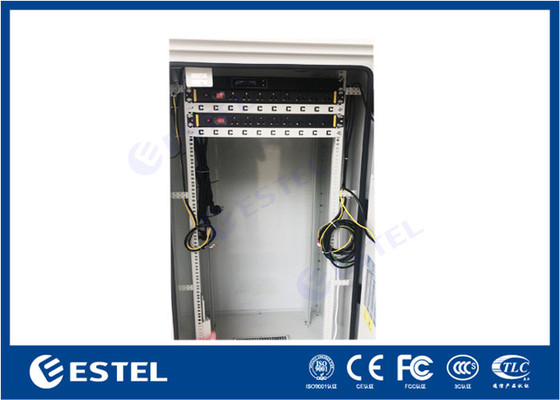

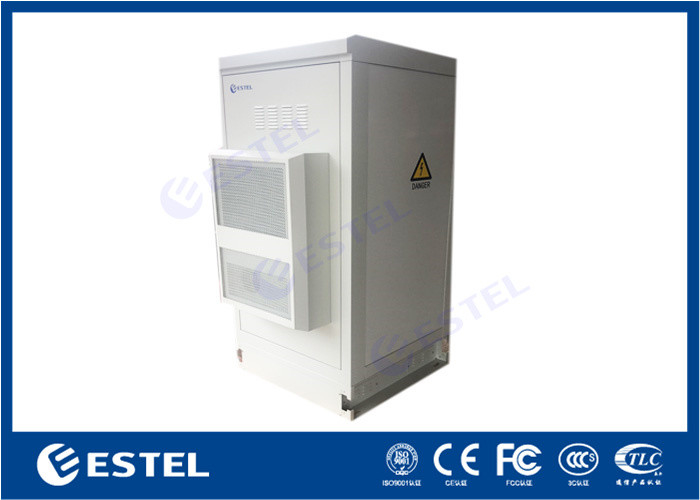

7. Cabinet Picture

8. Cabinet Door and Lock

The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock is theftproof three point lock, supporting padlock. Each cabinet door include open door sensor, working together with the environment monitoring unit.

9. Our Delivery Agent

The goods can be shipped by sea, by air, by courier, by land, by train, etc.Besides the following delivery agent, we can also look for the delivery agent with the best price in china if you need us to do for you.
