Two Walls Galvanized Steel Outdoor Electronics Cabinet Anti Theft Three Point Lock

Large Image : Two Walls Galvanized Steel Outdoor Electronics Cabinet Anti Theft Three Point Lock

Product Details:

Place of Origin:	China
Brand Name:	ESTEL
Certification:	ISO9001, CE, RoHs
Model Number:	ET8080175-1O

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	3-4 weeks
Payment Terms:	L/C, Western Union, T/T
Supply Ability:	5000 pcs/month

Contact Now

Detailed Product Description

Dimension:	W×D×H 800×800×1750mm	Material:	SPCC,stainless Steel,galvanized Steel
Cooling System:	Air Conditioner(Fans,or Heat Exchange)	Protection Level:	IP55
Waterproof:	Yes	Dust Proof:	Yes

1. Description Of IP 55 Electrical Enclosures

Telecom cabinets are the ideal way of storing and protecting equipment at remote sites. These outdoor telecom equipment cabinets come in different styles and sizes, but all have the same general purpose: to protect valuable equipment from natural elements and vandalism.

2. Selling points and Feature Of IP 55 Electrical Enclosures

- Material: SPCC,stainless steel,galvanized steel or as customer's requirements

- Cooling System: Air conditioner(Fans,or Heat exchange)

- Protection Level: IP55 ,Waterproof,dust proof.

- Sealed by import seal belt, waterproof design and air filter instrument realize the efficient protection

- Machine Protection Solution: the cabinet is designed specifically to protect it from human damage, earthquake and other damages.

3. Technical Parameters

Item	Type	Technical Parameter
Structure	Dimension	External Dimension W×D×H 800×800×1750mm
	Layout	One compartment
	Equipment Installation Method	19” standard rack
	Door	With one front door; with special lock for outdoor cabinet (support padlock)
	Material	Galvanized steel
	Structure	Assembled
	Ingress Protection	IP55
Temperature Control	Cooling	1500W Air Conditioner and 2 fans
Lighting	LED lamp	48V LED lamp
Temperature	Temperature	Working Temperature: -40°C ~ +55°C
		Storage Temperature: -50°C ~ + 70°C
		Transport Temperature: -50°C ~ +70°C

4. Accessories List

No.	Item	Quantity	Unit	Specs
1	Outdoor Telecom Cabinet	1	Set	(1) External Dimension W×D×H 800×800×1750mm (2) With one front door (3) Material: galvanized steel;
2	Air Conditioner	1	Set	1500W Air Conditioner, AC220V power supply
3	110V To 220V Transformer	1	Set	Used for air conditioner input
4	Fans	2	PC	12038, DC48V
5	Power Distribution Unit	1	Set	Grade B Lightning Proof 2 x 63A/1P 2x32A/1P 2x16A/1P 2x10A/1P 2x5A/1P Height: 3U
6	Embedded Telecom Power System (UPS)	1	Set	DC48V, 90A, 4800W; Model: GPE4890J
7	Package	1	Set	Wooden Case
8	Sensor			Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp)

5. Enclosure Cooling

1500W Air Conditioner, AC220V power supply

DC48V fans.

6. Cabinet Structure

(1) External Dimension W×D×H 800×800×1750mm

(2) One compartment;

(3) With one front door; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel

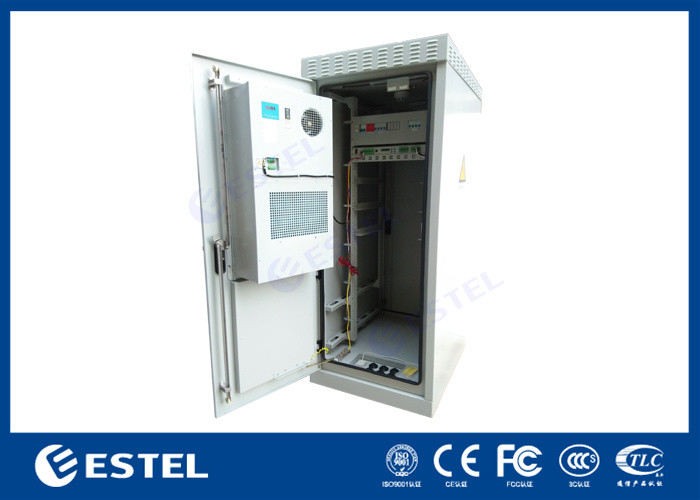

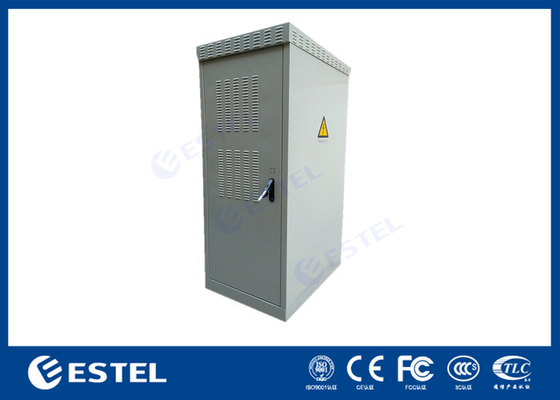

7. Cabinet Picture:

Two Walls Galvanized Steel Outdoor Electronics Cabinet Anti Theft Three Point Lock

8. Embedded Power System

Process of Electric Connection

Electric connection between main cabinet and external component includes: connection of AC input line, connection of DC output and battery, connection of communication cables, connection of GND cables. The main requirements of electrical connection are safety and reliability.
