One Compartment 19 Inch Waterproof Outdoor Wall Cabinet Anti Corrosion 1200mm Height
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Space: | Standard 19" Rack Rail | Access: | Front Access |
|---|---|---|---|
| Lock: | Anti-theft Three-point Locking System | Out Cover: | Anti-corrosion |
| Standard Color: | Light Grey RAL7035 | Material: | Galvanized Steel |
1. Application
The cabinets system can support Electrical equipment,PDU,Backup batteries,monitoring system and etc.This series enclosures offer all the protection needed for outdoor requirements.Ultimate security is provided by a three-point locking system.
2. Features
● Heavy duty outdoor construction
● Standard 19” rack rail
● Front access
● Anti-theft three-point locking system, support padlock
● Outdoor powder coating, anti-corrosion
● Standard Color: light grey, RAL7035. Custom color available
3.Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Size H*W*D 1200*650*650mm |
| Layout | One compartment, used for installing 19” equipment | |
| Equipment Installation Method | 19” rack | |
| Door | With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel, single wall with thermal insulation | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | 220VAC |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
4. Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H×W×D 1200× 650× 650mm. (2) One compartment: including 20U 19” rack. (3) With one front door, with three point lock for outdoor cabinet. (4) Material: galvanized steel, single wall with thermal insulation. (5) Floor installed. |
| 2 | Air Conditioner | 1 | Set |
Compressor type air conditioner Cooling Capacity: 500W Power Supply: 220VAC, 50Hz |
| 3 | Fan | 2 | Set | 220VAC |
| 4 | LED Lamp Switch | 1 | PC | For controlling LED lamp on/off |
| 5 | LED Lamp | 1 | PC | 220VAC |
| 6 |
Environment Monitoring System |
1 | Set |
1× environment monitoring unit,19”, 1U, 220VAC, SNMP communication 1× smoke sensor, 1× water sensor, 1× temperature & humidity sensor, 1× door sensor, |
| 7 | Package | 1 | Set | Wooden Case |
5. Cabinet Drawing
External Dimension H×W×D 1200×650×650mm(19”, 20U);

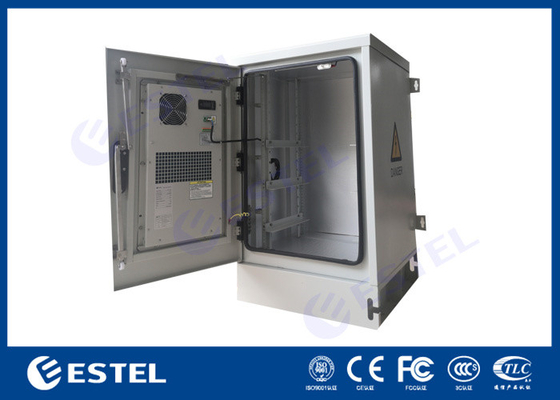

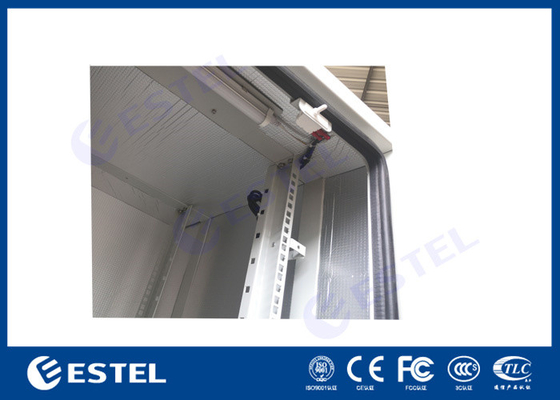

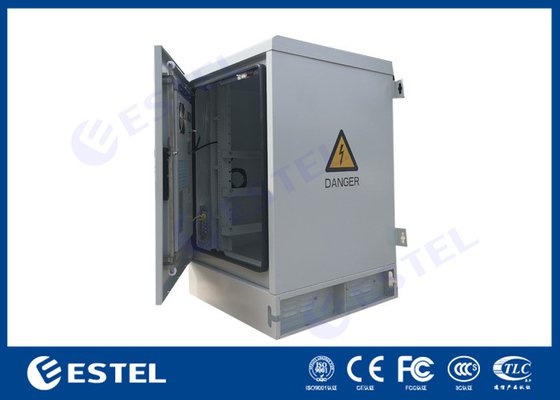

6. Cabinet Picture
7. Theft Proof Design,Door lock theft proof design
(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.
(2) Three point lock
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
