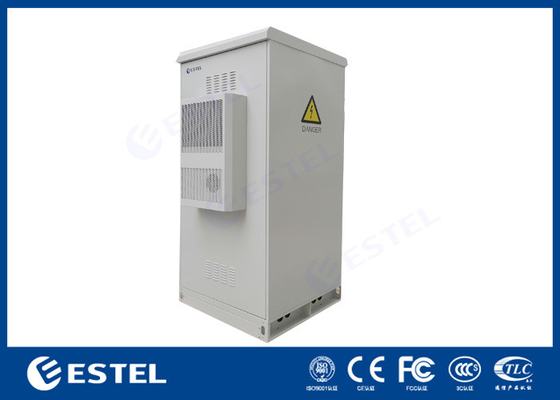

AC220V, 50Hz 1500W Air Conditioner DV48V Fans Double Door 40U Galvanized Steel Outdoor Telecom Equipment Cabinet

1. Introduction

10 years of experience in the design and fabrication of electrical enclosures that provide custom solutions at standard-model budgets. Our innovative electrical enclosure designs allow for efficient, cost-effective customization, ensuring that your enclosure meets your product and budget requirements. We are committed to meeting the fast turnarounds and cost-savings you need.

2. Features

● IP55

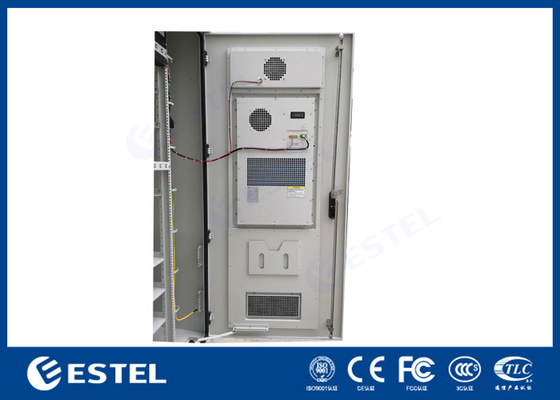

● Cooling by air conditioner

● High integration, compact structure, easy installation and migration on later stage

● Anti-theft three point lock

● Full protection: door sensor, smoke sensor, water sensor, temperature & humidity sensor. Environmental monitoring system provides alarm.

● Material: galvanized steel or as customer's requirements

3. Technical Parameters

4. Accessories List

5. Cabinet Dimensions

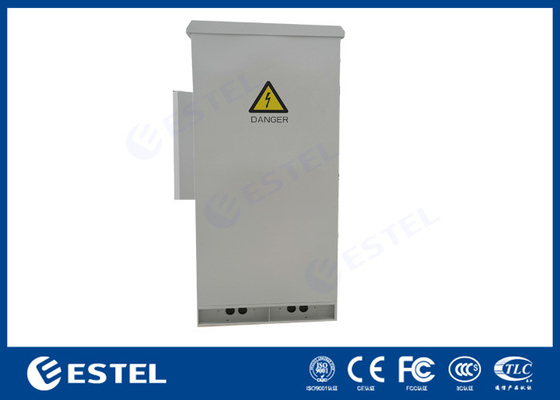

6. Cabinet Pictures

7, Power system connections

Communication cable making

a. Direction

Definition: Put the side with plastic shell of registered jack down, and the side with PIN up; put the end with PIN away from you, and the end with square hole near you (the end for pushing the network cable in when making network cable). Then define the far left one as PIN1, and the far right one as PIN8.

b. For RS232communication, PIN1 is 232TX (send), PIN4 is 232RX(receive), PIN5 is communication grounding.

c. For RS485 communication, PIN2 is RS485+, PIN3 is RS485-, other PINs are suspended.

d. Ethernet communication cable adopts T568A standard and T568B standard.

e. T568A standard cable connection method is from left to right: green and white--green--orange and white- -blue--blue and white--orange--brown and white--brown.

f. T568B standard cable connection method is from left to right: orange and white--orange--green and white- -blue--blue and white--green--brown and white--brown.

g. When two ends of the Ethernet cable both adopt T568A standard or T568B standard, it is Ethernet direct cable; When one end adopts T568A standard while the other end adopts T568B, it is Ethernet cross cable.

FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
