Home ProductsOne Compartment Outdoor Telecom Cabinet

One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet

Certification
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Timely response, professional skills, rigorous attitude, fast delivery, we are very satisfied, cooperation is very smooth.

—— Manish

From 1 sample to 45 sets, 76 sets, 200sets, we gradually established a strong trust. The cabinet quality is good and the design is reasonable.

—— Parmar

In the past three years, our cooperation is very cheerful, thanks for your company's technical support and patient service, the end user is very satisfied with the quality of outdoor telecom cabinet with cooling. Best wishes to our future cooperation.

—— Anthony

The air conditioner have been running for one and a half years. Cooling effective is good. Good after-sale service, and patiently instruct to use and solve technical problems. Environmental monitoring system is also running well, and remote monitoring the cabinet is very convenient.

—— Luis Alberto

I'm Online Chat Now

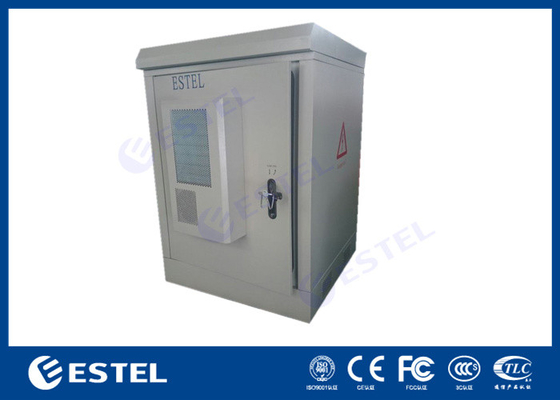

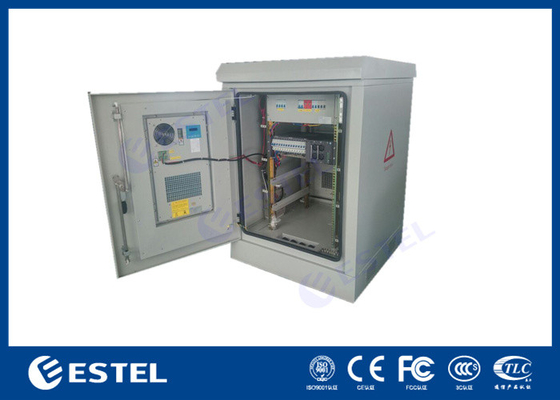

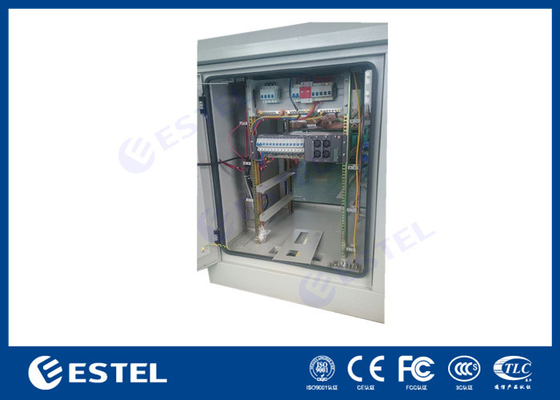

One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet

China One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet supplier
One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet supplier One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet supplier One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet supplier

Large Image :  One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: EX150114-5-O

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 15-20 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Contact Now
Detailed Product Description
Door: One Front Door Air Conditioner: 600W
Fans: DC48V Lock: Anti-Theft Lock
Embedded Door: YES Material: Galvanized Steel

1, Description Of Outdoor cabinet

this equipment safeguards all the electrical components that it houses from wear and tear, harsh surrounding and theft.You see, acquiring some of these components is often expensive.And that’s the reason protecting them from such elements becomes helpful.You also need this equipment for storing all the relevant electrical parts that you use in the industry.It follows that in many instances, you’ll need quite a number of elements which use electricity.So having all the connections, switches and controls could be somewhat challenging. And that’s why you’d need an Outdoor cabinet to enable you to store all these parts appropriately for easy and effective access.



2, Selling points and Feature Of Outdoor cabinet

● Front door to access the inside equipment

● Anti corrosion outdoor powder coating

● Standard 19“ rack for installation

● High integration, compact structure, easy installation and migration on later stage

● Anti-theft lock, excellent keyhole protection device

● Embedded door, enhance anti-theft





3, Technical Parameters

Item Type Technical Parameter
Structure Dimension

External Dimension H*W*D 1350*900*900mm

Internal Dimension H*W*D 1050*800*800mm

Layout One compartment
Equipment Installation Method 19” standard rack
Door With one front door
Material Galvanized steel; thickness of the plate: 1.5mm, with heat insulation
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling 600W Air Conditioner and fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2





4, Accessories List



No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1)External Dimension H*W*D 1350*900*900mm

Internal Dimension H*W*D 1050*800*800mm

(2) One compartment;

(3) With one front door with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; thickness of the plate: 1.5mm, with heat insulation

2 Air Conditioner 1 Set 600W Air Conditioner, AC220V power supply
3 110V To 220V Transformer 1 Set Used for air conditioner input
4 Fans 4 PC 12038, DC48V
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

AC Input: 63A/2P *1;

AC Output: 16A/1P*4;

DC Output: 16A/1P*4.

Height: 4U

6 Embedded Telecom Power System (UPS) 1 Set

DC48V, 60A, 3210W; Model:

1U-4860, Height: 1U.

7 Package 1 Set Wooden Case



5, Enclosure Cooling

One set Air conditioner 600W and 4 pcs DC48V fans.



6, Cabinet Structure

(1) External Dimension H*W*D 1350*900*900mm

Internal Dimension H*W*D 1050*800*800mm

(2) One compartment;

(3) With one front door,with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; thickness of the plate: 1.5mm, with heat insulation

7,Air conditioner

Wiring Diagram



One Front Door 600W Air Conditioner And DC48V Fans Anti-Theft Lock Galvanized Steel Outdoor Cabinet

Diagram 5: Wiring Diagram

8.Maintenance

Maintenance Tools:



  • Vacuum cleaner or compressed air cleaning agent
  • Soft brush
  • Cross screwdriver
  • Multimeter
  • Clamp meter
  • Digital thermometer



In order to keep normal temperature environment inside the cabinet, please conduct maintenance according to the “Maintenance Table”.



Maintenance Steps:

  • Turn off the power.
  • Disconnect the power line, and disconnect the signal line.
  • Conduct maintenance according to the “Maintenance Table”.
  • Connect the power line and signal line.
  • Operating testing program.
  • Disconnect the power, restore the normal operating status.
  • Connect the power.
  • The equipment installation should reserve a maintenance space not less than 300mm.





Maintenance Table

Check Items Step Description Maintenance Cycle
Casing Use brush or vacuum cleaner to clean the odds and ends on the casing. 6 months
Wiring Check if it gets loose and if the power supply voltage is normal. 6 months
Fans Abnormal Move the fans to check if the rotation is smooth, and if there’s abnormal noise or odds and ends. 6 months
Cooling Fin Use brush or vacuum cleaner to clean the dust on the cooling fin; use water or compressed air to clean the condenser. 6 months
Water Drainage Check if the water drainage pipe is smooth 1 year
Cooling/Heating At normal operating status, the measured temperature difference between inside and outside temperatures is higher than 10°C. 1 year
Cable Check if cable peeling occurs. 1 year
Communication Cable Check if the cable includes hidden danger such as peeling. 1 year
Grounding Cable Test if the equipment grounding and cabinet grounding is normally connected, and the resistance is lower than 0.1Ω. 1 year




FAQ

Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
