1230*900*900mm One Compartment 800W Air Conditioner DC48V Fans Outdoor Telecom Enclosure
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Air Conditioner: | 800W | Dimension: | 1230*900*900mm |
|---|---|---|---|
| Galvanized Steel: | YES | Structure: | Assembled |
| Lighting: | DC 48V LED Lamp | Storage Temperature: | -50°C ~ + 70°C |
1, Description Of Outdoor Telecom Enclosure
Outdoor Telecom Enclosure is a type of cabinet or cage that you use for storing different electrical components.It is common in various industrial applications given that it can house as many components as possible.Outdoor Telecom Enclosure come in different designs, shapes as well as sizes. Undoubtedly this is fundamental since it enables you to pick the suitable one which suits your needs.
2, Selling points Of Outdoor Telecom Enclosure
- Cabinet design allows natural wind cooling through filtered vents on front door and venting under lip of rain hood
- All fixings are internal to the cabinet to provide a secure solution
- 19" mounting rails front and rear
- Come with plinth for mounting on the floor ground
- Available in colors, Grey, customized colors
3, Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension |
External Dimension H*W*D 1230*900*900mm Internal Dimension H*W*D 900*800*800mm |
| Layout | One compartment | |
| Equipment Installation Method | 19” standard rack | |
| Door | With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) | |
| Material | Galvanized steel; double walls, thickness of outer plate: 1.3mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. | |
| Structure | Assembled | |
| Ingress Protection | IP55 | |
| Temperature Control | Cooling | 800W Air Conditioner and fans |
| Lighting | LED lamp | DC 48V LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C | ||
| Transport Temperature: -50°C ~ +70°C | ||
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1124 × (1±5%)W/m2 |
4, Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Dimension H*W*D 1230*900*900mm ; Internal Dimension H*W*D 900*800*800mm (2) One compartment; (3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (4) Material: galvanized steel; double walls, thickness of outer plate: 1.3mm, thickness of inner plate: 0.8mm, with heat insulation between two walls. |
| 2 | Air Conditioner | 1 | Set | 800W Air Conditioner, AC220V power supply |
| 3 | 110V To 220V Transformer | 1 | Set | Used for air conditioner input |
| 4 | Fans | 3 | PC | DC48V |
| 5 | Power Distribution Unit | 1 | Set |
Grade B Lightning Proof AC Input: 63A/2P *1; AC Output: 16A/1P*4; DC Output: 16A/1P*4. Height: 4U |
| 6 | Embedded Telecom Power System (UPS) | 1 | Set |
DC48V, 60A, 3210W; Model: 1U-4860, Height: 1U. |
| 7 | Package | 1 | Set | Wooden Case |
5, Enclosure Cooling
One Air conditioner and 3 pcs DC48V fans.
6, Cabinet Structure
(1) External Dimension H*W*D 1230*900*900mm ;
Internal Dimension H*W*D 900*800*800mm
(2) One compartment;
(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet
(4) Material: galvanized steel; double walls, thickness of outer plate: 1.3mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

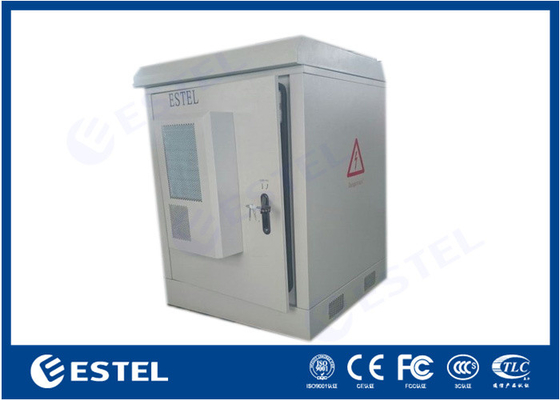

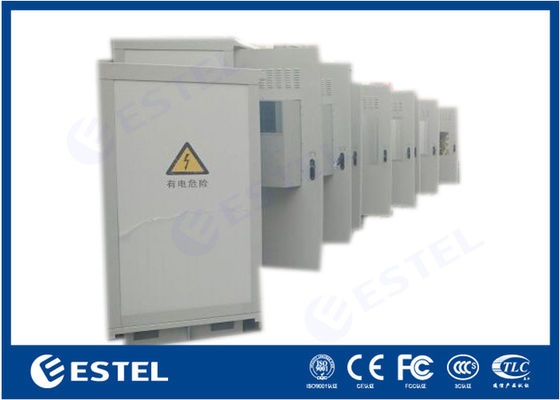

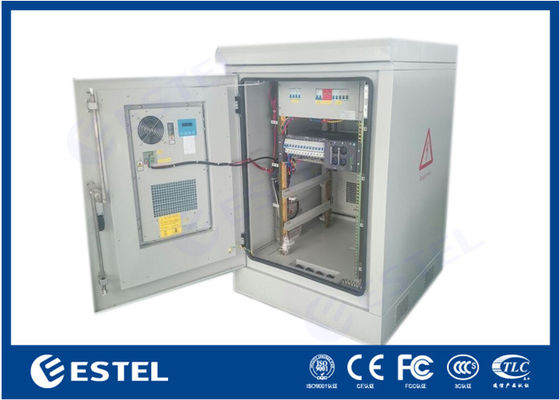

7, Cabinet Picture:
8, Air conditioner
8.1 System Principle Diagram
Diagram 1: System Principle Diagram
8.2 Standard Compliance
Table 1 Standard Compliance
| Standard | Description |
| GB/T 17626.7-1998 | Electromagnetic compatibility |
| GB4706.1 | Safety of household appliance and electrical appliance with similar use. |
| GB4798.1 | Environmental conditions existing in the application for electric and electronic products - storage |
| GB4798.2 | Environmental conditions existing in the application for electric and electronic products - transportation |
| GB4798.3 | Environmental conditions existing in the application for electric and electronic products - usage |
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a experienced manufacturer with our own design and production lines.
Q2. Do you have any MOQ limit for outdoor cabinet ?
A: Low MOQ, 1pc for sample checking is available.
Q3: Can I get sample order?
A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.
Q4: Are you able to customize items with design or logo?
A: Yes, OEM & ODM is available.
Q5: How do you ship the goods and how long it will take?
A: We normally make shipment by sea or air which usually takes about 10- 50 days depend on the destination.
Q6: How long is the product warranty ?
A: We guarantee all our products 12 months warranty.
