IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans

China IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans supplier
IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans supplier IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans supplier IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans supplier IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans supplier

Large Image :  IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans

Product Details:

Place of Origin: Shenzhen, China (Mainland)
Brand Name: ESTEL
Certification: ISO9001, CE, 3C, FCC, TLC, IP55
Model Number: EA2315001-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram
Supply Ability: 5,000 sets per month
Contact Now
Detailed Product Description
Protection: IP55 Protection Level Cooling System: Air Conditioners
Layout: One Compartment Door: Two Doors
Material: Galvanized Steel Structure: Assembled

1, Description Of Outdoor Telecom Enclosure
This outdoor telecom cabinet is designed and produced by ESTEL, which is made of high-quality galvanized steel,coated with anticorrosive and anti-ultraviolet powder, and with IP55 protection grade. The cabinet is equipped with a power system, lightning protection and grounding system, temperature control system, lighting system, and user equipment installation space.



2, Selling points and Feature Of Outdoor Equipment Enclosure

  • The cabinet with IP55 protection level is dustproof, sunproof, and rainproof, especially suitable for the outdoor environment.
  • The cabinet uses air conditioners as a cooling system, which can effectively reduce the temperature in the cabinet.
  • The layout of the cabinet is reasonable to facilitate cable access, fixing, and grounding. There are entrance holes individually for power cable, signal cable, and optical cable.
  • All the cables used in the cabinet are made from flame-retardant materials. Access control, smoke, water immersion, temperature, humidity, and other comprehensive protection.
  • Professional outdoor powder spraying, and strong weather resistance.
  • Support custom made



3, Technical Parameters

Item Type Technical Parameter
Structure Dimension External Dimension H*W*D W×D×H 750×750×1750mm
Layout One compartment
Equipment Installation Method 19” standard rack, 24U
Door With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)
Material Galvanized steel; double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.
Structure Assembled
Ingress Protection IP55
Temperature Control Cooling 1500W Air Conditioner and 2 fans
Lighting LED lamp 48V LED lamp
Temperature Temperature Working Temperature: -40°C ~ +55°C
Storage Temperature: -50°C ~ + 70°C
Transport Temperature: -50°C ~ +70°C
Humidity Relative Humidity 5% ~ 100%
Pressure Air Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
Radiation Intensity Solar Radiation Intensity 1124 × (1±5%)W/m2





4, Accessories List

No. Item Quantity Unit Specs
1 Outdoor Telecom Cabinet 1 Set

(1) External Dimension H*W*D 1225*900*900mm ;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock) (4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

2 Air Conditioner 1 Set 1500W Air Conditioner, AC220V power supply
3 110V To 220V Transformer 1 Set Used for air conditioner input
4 Fans 2 PC 12038, DC48V
5 Power Distribution Unit 1 Set

Grade B Lightning Proof

2 x 63A/1P

2x32A/1P

2x16A/1P

2x10A/1P

2x5A/1P

Height: 3U

6 Embedded Telecom Power System (UPS) 1 Set

DC48V, 90A, 4800W; Model:

GPE4890J

7 Package 1 Set Wooden Case
8 Sensor     Sensors (including 1 smoke sensor, 2 door alarm, 2 LED lamp, 1 water sensor, and 1 temperature and humidity sensor.)



5, Enclosure Cooling

1Set 1500W Air Conditioner, AC220V power supply

2 pcs DC48V fans.



6, Cabinet Structure

(1) External Dimension H*W*D 1225*900*900mm ;

(2) One compartment;

(3) With one front door and one back door, totally two doors; with special lock for outdoor cabinet (support padlock)

(4) Material: galvanized steel; double walls, thickness of outer plate: 1.2mm, thickness of inner plate: 0.8mm, with heat insulation between two walls.

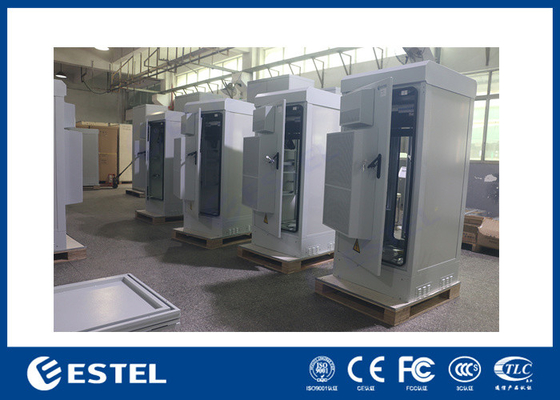

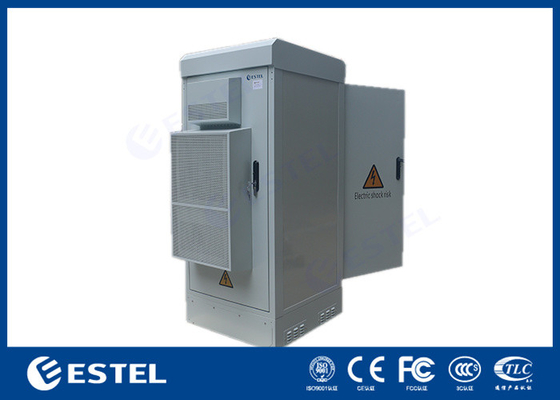

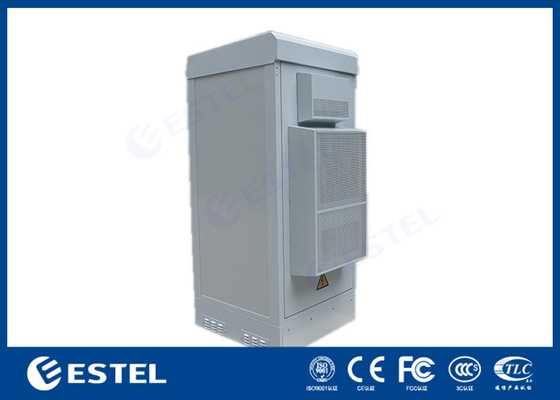

7, Cabinet Picture:



IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans









8, Rectifier System

IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans

9, Power system

◆The monitor has sleeping function

◆Adoption of active powerfactor

compensation technology with factor

>0.99

◆Wide operating range of AC input ;

voltage: 90~280Vac ;

◆Operating temperature range: -25°C~+55°C

◆Zero current/voltage switching tech with high efficiency≥91%

◆Perfect battery management, charge & discharge management, battery temperature compensation, low voltage protection,extend battery lifetime

◆Hot-swappable

◆The monitor has sleeping function, saving energy., Input over/under voltage protection

◆Output over voltage protection

◆Output over current protection

◆Output short circuit protection

◆Embedded mounted

IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans

IP55 24U 19inch Uncorrosion Two door Outdoor Enclosure with 1500W Air Conditioner and 2 Fans
