2.0KW Cooling Capacity Outdoor Telecom Cabinet Galvanized Steel With Heat Insulation
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Cabinet Door: | One Front Door | Layout: | 1 Compartment |
|---|---|---|---|
| Certificates: | CE | External Size: | H×W×D 2100×900×900mm |
| Material: | Galvanized Steel | Color: | Grey / Optional |
| Cooling System: | Air Condtioner And 2 Fans | IP Rating: | IP55 |
2.0KW Cooling Capacity Outdoor Telecom Cabinet Galvanized Steel With Heat Insulation
1. Cabinet Instructions
This series cabinet is 2100mm High and 900mm Wide and 900mm Deep. For those who need more than just standard cabinet, this series can also offer a truly the security of customized solution with lots of available options, providing a climate-controlled environment for any electronic equipment, electrical load panels and cable entry solutions. It provides a secure,climate controlled environment for any electronic equipment.
2. Cabinet Parameters
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set |
(1) External Size H×W×D 2100×900×900mm (2) One compartment: equipment compartment (3)With one front door, and anti-theft three point lock for outdoor cabinet (support padlock) (4) Material: Galvanized steel ; 1.5mm thick outer plate, 0.8mm thick inner plate with 20mm PEF heat insulation between two walls. |
| 2 | Air Conditioner | 1 | Set |
Cooling capacity: 2.0KW, Power supply: AC220V, 50HZ; |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | 12038 DC48V |
| 4 | Door Sensor | 2 | PC | One for controlling LED lamp, the other for open door alarm |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Embedded Telecom Power System (Rectifier) | 1 | Set | Optional |
| 7 | Temperature control switch | 1 | PC | 35°C temperature control switch |
| 8 | Package | 1 | Set | Wooden Case |
3. Cabinet Description
3.1Cabinet Material
The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.
3.2Cabinet Structure
The cabinet is equipment cabinet, including 19” equipment installation rack, with air conditioner on cabinet door.
3.3Cabinet Door
The cabinet door uses embedded structure. The door opening angle is larger than 110°and the door limit device can limit the opening angle. Each cabinet door include open door sensor, working together with the environment monitoring unit.

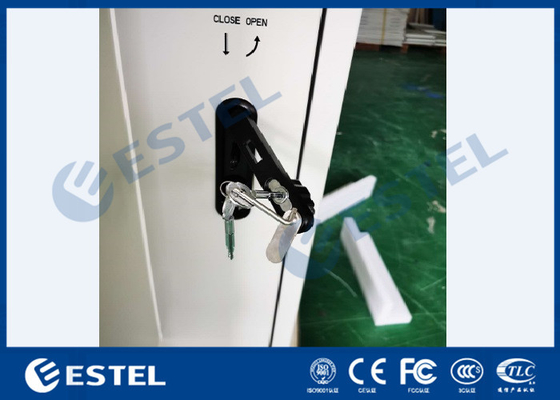

3.4Door lock
The lock is theftproof three point lock, supporting padlock
4.Cabinet Features
4.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.
4.2 The cabinet cooling uses air conditioner and fans.
4.3 Including -48VDC illumination lamp.
4.4 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. At the bottom of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.
4.5 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant materials.
4.6 The cabinet includes 19” standard installation rack.
5. Cooling System

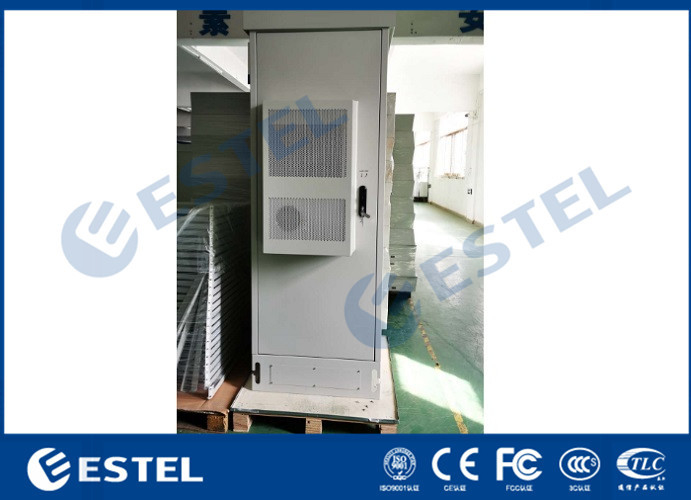

AC220V air conditioner installed on the front door.
DC48V fans are intalled on the top cover
6. Cabinet Production
