Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling

Certification
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Good quality Two Compartments Outdoor Telecom Cabinet for sales
Timely response, professional skills, rigorous attitude, fast delivery, we are very satisfied, cooperation is very smooth.

—— Manish

From 1 sample to 45 sets, 76 sets, 200sets, we gradually established a strong trust. The cabinet quality is good and the design is reasonable.

—— Parmar

In the past three years, our cooperation is very cheerful, thanks for your company's technical support and patient service, the end user is very satisfied with the quality of outdoor telecom cabinet with cooling. Best wishes to our future cooperation.

—— Anthony

The air conditioner have been running for one and a half years. Cooling effective is good. Good after-sale service, and patiently instruct to use and solve technical problems. Environmental monitoring system is also running well, and remote monitoring the cabinet is very convenient.

—— Luis Alberto

I'm Online Chat Now

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling

China Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling supplier
Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling supplier Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling supplier Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling supplier Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling supplier

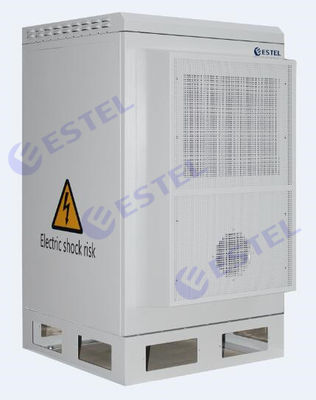

Large Image :  Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling

Product Details:

Place of Origin: China
Brand Name: ESTEL
Certification: ISO9001:2008
Model Number: ET6565115PWF-UP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 15~20 Days
Payment Terms: T/T,L/C
Supply Ability: 60000 Sets Per Year
Contact Now
Detailed Product Description
Material: Galvanized Steel Color: Grey (support Custom Made)
External Dimension: W×D×H 650×650×1150mm Structure: Single Wall With Heat Insulation
Protection Level: IP55 Cable Entry: At Cabinet Bottom
Cooling: Heat Exchanger

Steel Wall Mount Outdoor Cabinet / Pole Mount Enclosure Equipemnt Battery Cabinet With Heat Exchanger Cooling



1 Product Description

1.1 Appearance

After the cabinet is installed, as shown in Figure 1 and Figure 2



Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger CoolingThermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling

            Figure 1                                                        Figure 2











1.2 Cabinet configuration



The outdoor integrated cabinet configuration of this project is as follows:



Cabinet type Configuration Quantity Specifications
Main cabinet 19 inch standard rack 1 10U
Battery holder 1

2 layers

Each layer W×D×H 650×650×200 mm

Illumination 1 48V DC, LED light
Heat exchanger 1

Input voltage: DC48V

heat exchange capacity : 120W/K

Emergency fan 2 48V DC, bottom plate air intake
Grounding copper bar 1 M6 bolts 10
Busbar 1 M6 bolts 10
AC and DC power distribution unit 1

AC input: 63A/2P*1;

AC output: 63A/2P*1;

DC input : 63A/1P *1;

DC output : 16A/1P*1;

DC output : 10A/1P*3;

DC output : 6A/1P*3

Circuit breaker brand: Schneider

Socket 1 8 -bit universal socket, 220V 16A
Embedded power supply 1

Model: NetSure211 C23

DC48V, 40A ,1U

distribution unit *1

20A rectifier module *2

monitoring module *1

Brand: Emerson

Environmental monitoring system 1

1* environment monitoring unit, 1U, SNMP communication;

1* smoke sensor;

1* water sensor;

1* temperature & humidity sensor;

1* tilt & shock combination sensor;

1* door sensor

power supply: DC48V

Base sealing plate 1 1 set contains 8 pieces, 2 blocks from front to back


1.3 Cabinet size



The size of a single cabinet is shown in Figure 3 . External size: W×D×H 650×650×1150mm

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling

Figure 3



1.4 Cabinet material



single layer galvanized steel + heat insulation :

Outer layer: 1.5mm galvanized steel, inner layer: 20mm PEF heat insulation



2 Cabinet installation

2.1 Unpacking

Outdoor integrated cabinets are generally packed in wooden cases. When disassembling the package, take care to avoid damage to the cabinet.



2.2 Floor, wall hanging, pole installation steps and dimensions



1 ) Landing

Floor installation effect diagram

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling







Cabinet base size and base expansion bolt fixing hole position

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling



2 ) Wall mount

Wall mounting effect diagram

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling



Wall mounting steps

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling



Wall mounting size diagram

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling





3 ) Pole

Pole mounting effect diagram

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling





Pole mounting steps

Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling





Pole size



Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling

2.3 Base sealing plate



If you need to seal the base of the cabinet, use the base sealing plate (optional) to seal the notch and hole around the base. The mounting screws are the M5 stainless steel screws in the cabinet attachment (see Figure 4 ).



Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling



Figure 4



Note: If the cement foundation is not flat, it is recommended to use a gasket or spacer to level the base of the cabinet.



3. Cabinet picture



Thermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger CoolingThermostatic Wall / Pole Mount Outdoor Telecom Cabinet / Equipemnt Battery Cabinet With Heat Exchanger Cooling
